  • Medallion 5MP IP Dragonfire® Varifocal Turret Network Camera with   2.8-12mm Motorized Auto Focus Lens - COR-IP5TRV
  • Medallion 5MP IP Dragonfire® Varifocal Turret Network Camera with   2.8-12mm Motorized Auto Focus Lens - COR-IP5TRV
  • Medallion 5MP IP Dragonfire® Varifocal Turret Network Camera with   2.8-12mm Motorized Auto Focus Lens - COR-IP5TRV
IP

H.265 / H.264 | 5MP | Network IP | PoE | Dragonfire® IR

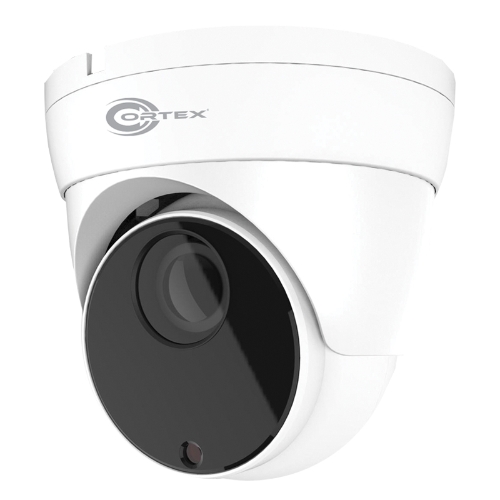

Medallion 5MP IP Outdoor Turret Security Camera with Varifocal 2.8-12mm motorized Auto focus zoom lens. The Dragonfire® IR provides amazing night time shots in full color. This Medallion IP Dome /Turret Security Camera has 2592(H)×1944(V) 2K resolution and a Dragonfire® IR array.

Send Me Prices

Camera:
5 MP, Dome, Infrared, IP Network, Outdoor, PoE, Varifocal Lens

Get Prices

Price: Login
Points to Purchase:2817
Quantity:
Item #: COR-IP5TRV
Availability: In Stock
Usually ships In 1-2 Business Days

H.265 / H.264 | 5MP 1080P | Network IP | PoE | Dragonfire® IR

Medallion 5MP IP Outdoor VF IR Turret Network Camera with 2.8-12mm motorized zoom. High Resolution IR technology provides amazing night time shots in full color. This Medallion IP Dome/Turret Security Camera has 2592(H) × 1944(V) resolution.

Main Features

  • Premium Components
  • 5MP 2592 (H) × 1944 (V) Resolution
  • 1/2.9” Progressive CMOS
  • 2.7 ~ 12mm (Motorized) Lens
  • H.FOV: : 103 ~ 28°
  • 1 pcs (Array)
  • H.265 / H.264 Video Compression
  • Premium Components
  • Auto switching infrared-cut filter (OSD on/off)
  • 3 individually adjustable streams
  • IEEE 802.3af / IEEE 802.3at | PoE
  • IP66 Waterproof Metal Housing Casing
  • Up to 145 feet (45m) IR Rang
  • IP5T with "RF" for Fixed Lens Turret or "RV" for Varifocal
  • Resolution: 5MP 2592(H)×1944(V)
  • Image Sensor: 1/2.9" Sony® Exmor Progressive CMOS (6.82M pixels)
  • Min. Illumination: Color 0.1lux @ F1.2(AGC ON) ; B/W 0 lux @ IR ON
  • Shutter Time: Auto/Manual 1/5 ~ 1/20000s
  • Shutter Controls: Active Shutter Controls
  • Lens: 2.8 ~ 12mm (Motorized) H.FOV: 87 ~ 28°
  • F-Stop: F 1.6 ~ 2.9 ±5%
  • Day&Night: Auto switching infrared-cut filter (OSD on/off)
  • WDR: Digital WDR
  • Video Compression: H.265/H.264
  • Video Bit Rate: 8Kbps ~ 8Mbps
  • Video Streaming: 3 Individually Adjustable Streams
  • Frame Rate:
    • Mainstream: Up to 15fps, 5MP(2592×1944),4MP(2592x1520), 3MP(2048x1520),1080P(1920x1080), 960P(1280x960), 720P(1280x720)
    • Substeam: 720P(1280x720),VGA(640x480),QVGA(320x240)
    • Mobilestream: VGA(640x480), QVGA(320x240)
  • Image Settings:
    • Image rotate, Saturation, Contrast, Hue, Brightness, Sharpness
  • BLC: Supported
  • ROI: Supported
  • Privacy Mask: Supported
  • AI Analytics:
    • Cross line Detection, Intrusion Detection, Stationary Object Alert, Pedestrian Detection, Face Detection, Cross Counting
  • Protocols:
    • TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,PPPoE, SMTP,NTP,UPnP,SNMP,HTTPS,FTP,
  • Compatibility: Open compatibility, API, Cortex Plug&Play
  • Network Interface: RJ45 10M / 100M Ethernet Interface
  • Illumination: 40pcs (DragonFire® SMD) LEDs Stealth Infrared Cover
  • IR Range: Up to 145 feet (45m)
  • ePTZ: Digital Pan Tilt Zoom
  • SD storage: Yes, Micro SD
  • Alarm Trigger: Yes, Screw Terminal
  • Audio: Yes
  • Video Output: Yes
  • Reset System: Hardware reset button and software
  • PoE: Yes, IEEE 802.3af / IEEE 802.3at
  • Casing: Metal housing IP66 Waterproof
  • Power Supply: DC 12V/POE
  • Storage Temperature: -30~+60°C (-22~+140°F)
  • Operating Temperature: -30~+55°C (-22~+131°F)
  • Dimension: Ø135.4 X 127.7mm (Ø5.33 X 5 inches)
  • Weight: Approximately 1.59 lbs (720g)
