Medallion 8MP IP Indoor Fish Eye Network Camera with 360° panoramic view and PoE
  • Medallion 8MP IP Indoor Fish Eye Network Camera with 360° panoramic view and PoE
  • View size compared to hand for the Medallion 8MP IP Indoor Fish Eye Network Camera with 360° panoramic view and PoE
IP

H.265 | 8MP Panoramic Outdoor Camera | Network 360° | PoE

8MP Outdoor Panoramic Network Camera with 360° view and PoE. Sony® Starvis and Exmor CMOS technology to provide amazing night time shots in full color. This Medallion network Camera has with 1.1mm fixed lens with 4K resolution and audio microphone. Panoramic immersive technology dewarps the images on web-browser, NVR view and Playback through recorder and software.

Send Me Prices

Medallion Cortex security products IP Network Cortex security productsH.265 resolution on Cortex security products Fixed len security cameras by Cortex security
Get Prices

Price: Login
Points to Purchase:5984
Quantity:
Share this product
Item #: COR-IP8FISH
Availability: In Stock
Usually ships In 1-2 Business Days

H.265 | 8MP Outdoor Panoramic | 4K Network Camera | PoE

The IP8FISH Outdoor fisheye network camera from Cortex is the perfect solution for 360 degree observation using the latest panoramic technology. This rugged IP camera allows users to get a great feel and control of an area while adding features like dewarping and ePTZ that further enhances the user experience. Not only can you move around the image with digital pan tilt zoom controls, you can also perform these tasks while on the go from the comfort of your smart phone or CMS surveillance software.

A multi-channel break out view option allows 4 camera or 9 camera cropped views from a single fisheye camera deployment. The user can then adjust each individual window using ePTZ immersive dewarping. These amazing viewing options are available on live, playback and remote viewing.

The Medallion Fisheye immersive experience is a great tool for business owners and warehouse managers.

Take full advantage of these 8MP fisheye models by complimenting the installation with a Cortex Medallion series NVR and CMS software.

Main Features

  • Fisheye Network Camera for Indoor
  • 1/2.5” Sony® Exmor Progressive CMOS (8.51 pixels)
  • 8MP 3840(H) × 2160(V) Resolution
  • On-board audio microphone
  • Cortex® 4k panoramic immersive technology
  • 1.1mm Lens with 360° or 180° Angle of Panoramic View
  • H.265 / H.264 Video Compression
  • On-Board audio designed for weatherproof installations

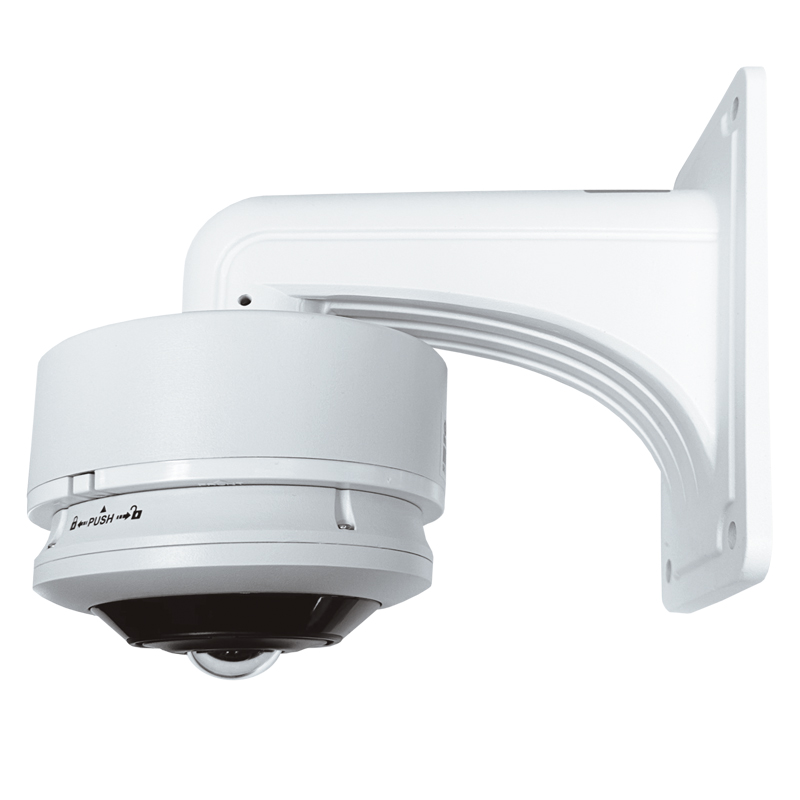

  • Selectable mounting options and menu configuration Wall mount, ceiling mount or angled mount
  • Premium Components
  • Cortex panoramic immersive technology
  • Dewarping Technology on NVR, Smartphone apps and web browser
  • IE browser dewarping and ePTZ functions
  • 15 feet Radius (5m) IR Range (30 feet diameter)
  • Highly sensitive in low light
  • IP66 outdoor use
  • Dynamic Noise Reduction for low light environments
  • Auto switching infrared-cut filter (OSD on / off)
  • Multiple Adjustable Video Streaming
  • SD card slot for edge recording PoE (Power over Ethernet) for easy installation Onvif Compatibility and Cortex Medallion plug and play
  • Resolution: 8MP 4K UHD
  • Fisheye IP camera with dewarping and ePTZ
  • Advanced panoramic dewarping on live and playback
  • Image Sensor: 1/2.5” Sony® Exmor Progressive CMOS (8.51 pixels)
  • Fisheye IP camera with dewarping and ePTZ
  • Min. Illumination: Color 0.1lux @ F1.2(AGC ON) ; B/W 0 lux @ IR ON
  • Shutter Time: Auto/Manual 1/5 ~ 1/20000s
  • Lens: Panoramic 1.1mm with 360° angle of view
  • F-Stop: F 2.0 ±5%
  • Day&Night: Auto switching infrared-cut filter (OSD on/off)
  • WDR: Digital
  • Dynamic noise reduction
  • Video Compression: H.265 / H.264
  • Video Bit Rate: 8Kbps ~ 8Mbps
  • Video Streaming: 3 Individually Adjustable Streams
  • Frame Rate:
    • Mainstream:8MP (3840x2160),4MP(2592x1520), 3MP(2304x1296),1080P(1920x1080),720P(1280x720)
    • Substeam: 1080P(1920x1080),720P(1280x720),VGA(640x480),QVGA(320x240)
    • Mobilestream: VGA(640x480), QVGA(320x240)
  • Image Settings:
    • Image rotate, Saturation, Contrast, Hue, Brightness, Sharpness
  • BLC: Supported
  • ROI: Supported
  • Protocols:
    • TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,PPPoE, SMTP,NTP,UPnP,SNMP,HTTPS,FTP,
  • Compatibility: ONVIF®, API, Cortex Plug&Play
  • Network Interface: RJ45 10M / 100M Ethernet Interface
  • Illumination: 3pcs(SMD)
  • IR Range: Up to 15 feet (5m) or 30 feet diameter
  • SD storage: Yes, Micro SD
  • Alarm Trigger: Yes, Screw Terminal
  • Audio: Yes
  • On-board audio microphone
  • Video Output: Yes
  • Reset System: Hardware reset button and software
  • PoE: Yes (IEEE 802.3af)
  • Casing: IP66 outdoor use
  • Power Supply: DC 12V or PoE
  • Consumption: ≤ 5W
  • Storage Temperature: -30~+60°C (-22~+140°F)
  • Operating Temperature: -30~+55°C (-22~+131°F)
  • Dimension: Ø120 X 55mm (Ø4.72 X 2.16 inches)
  • Weight: Approximately .88 lbs (400g)
  • Specification Sheet
