H.265+ / H.265 / H.264 | 5MP | Network IP | PoE |

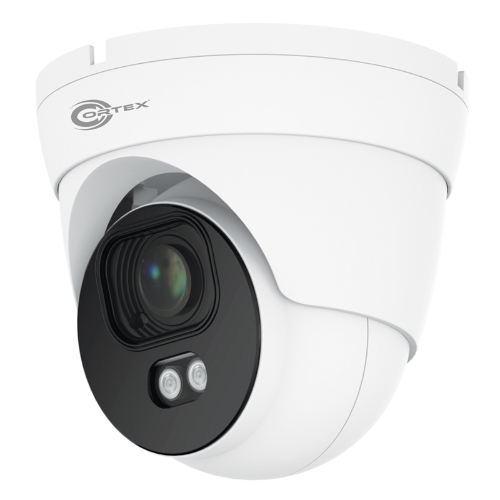

With Excellent image quality and advanced features, the Cortex Medallion Series network turret 5MP cameras are ideal for everyday commercial use but robust enough for high demand projects. This model is equipped with on-board SD card recording for edge storage which also allows for 3G / 4G solar panel based remote sights. A full suite of intelligent analytics are incorporated and truly increases the value of this already impressive network camera.
One lock auto focus technology delivers reliable focusing in extreme conditions and prevents loss of image clarity when switching between day and night scenes. The main benefit of auto focus is ease of use but this is amplified with the dependable one-lock technology that takes advantage of focus shift-corrected lenses and does not require refocusing after the IR filters are snapped on. This 5MP IP camera delivers superior performance in low light thanks to its High Resolution CMOS sensor and the low light lens. The Starlight technology allows this network camera to see impressive color with a minimal amount of light and increases shutter speeds to reduce motion distortion. Dynamic noise reduction takes care of the few artifacts generated by application and gain.
The Cortex IP systems are Open compatibility third party compatible and plug-and-play with Medallion NVRs and DVRs
What is the best 5MP IP camera? With all of the features listed and a complete set of extra unique features, this Cortex® IP model is the best for many applications!
Make sure test this 5MP camera online or at a local showroom.
Main Features
- Premium Components
- 5MP 2592 (H) × 1944 (V) Resolution
- 1/2.7" ColorMax CMOS;
- 2.7 ~ 13.5mm (Motorized)
- Angular Field of View: Horizontal: 31 ~102°, Vertical: 23 ~ 73°, Diagonal: 38 ~ 138°
- Up to 145 feet (45m) IR Range
- H.265+ / H.265 / H.264 video compression
- Auto switching infrared-cut filter (OSD on / off)
- Multiple adjustable Video Streaming
- LPR and Human Detection
- Cortex Edge AI processing direct to SD cards
- Dual Lighting
- IP66 Waterproof Metal Housing Casing
- NDAA Compliant - FCC approved
- IP5T with "RF" for Fixed Lens Turret or "RV" for Varifocal, add "A" for Artificial Intelligence
- Video Compression Format:H.265+ / H.265 / H.264
- Resolution:5MP 2880(H)×1620(V)
- Image Sensor:1 / 2.7” ColorMax CMOS)
- Min. Illumination: Color 0.003lux @ F1.6(AGC ON) ; B/W 0 lux @
IR ON
- LENS TYPE
- Video Quality Ajustment: 256Kbps ~ 8Mbps
- Electronic Shutter Speed: 1/5 ~ 1/20000s
- Focal Length (Zoom Ratio): 2.7-13.5mm motorized varifocal
- Max. Aperture Ratio: F1.8 (W) ~ 3.3 (T)
- Angular Field of View: Horizontal: 31 ~102°, Vertical: 23 ~ 73°, Diagonal: 38 ~ 138°
- Min. Object Distance: 0.3m~INF
- Lens Type: Motorized varifocal
- OPERATIONAL
- Camera Title: On / Off
- Day & Nigh: IR cut filter with auto switch (Day / Night /Auto /
Image /Schedule)
- Backlight Compensation:Off / On (5 Zone)
- IR Viewable Length: Up to 145 feet (45m)
- Wide Dynamic Range: True WDR 120dB
- Digital Noise Reduction: 3D DNR
- Motion Detection: Off / On (8 Level)
- Image Settings: Full Color Mode / Day&Night Mode / Schedule
- Privacy Masking:Off / On (4 Zone, Rectangle)
- Hardware Reset: Yes
- Gain Control: Auto
- White Balance: Auto / Manual
- On-Board Storage: Micro SD slot, up to 256GB Cortex Edge AI processing direct to SD cards
- Alarm: 1 input , 1 output
- Audio: 1 input (RCA), 1 output (RCA) / Built-in microphone
- AI Smart Feature:
- License Plate Detection (LPD)
- Face Recognition(FR)
- Human&Vehicle Detection (PD&VD)
- PerimeterIntrusion Detection(PID)
- Line Crossing Detection(LCD) Cross Counting (CC)
- Stationary Object Detection (SOD)
- Heat Map(HM)Crowd Density Detection (CD)
- QueueLength Detection (QD)
- Rare Sound Detection (RSD)
- NETWORK
- IP / Ethernet: IPv6 / RJ45(10/100BASE-T)
- Resolution:
- Mainstream: @30fps,5MP(2880×1620),4MP(2592x1520),3MP(2304x1296),1080P(1920x1080),960P(1280x960),720P(1280x720)
- Substeam: @30fps, 720P(1280x720),VGA(640x480),QVGA(320x240)
- Mobilestream: @30fps VGA(640x480),VGA(640x480), QVGA(320x240)
- Bitrate control method: CBR/VBR
- Streaming Capability / Method: Triple-Stream (Main/Sub/Mobile) / Unicast / Multicast
- Protocols:
- TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,PPPoE,
SMTP,NTP,UPnP,SNMP,HTTPS,FTP,
- Security: Complex password; authenticated username and password
- Streaming Method: Unicast / Multicast
- Application Programming Interface: Open Compatibility, ( Profile S / G / T)
- Web Viewer:IIE10/11,Safari V12.1 above,Firefox V.52 above,
Google chrome V.57 above,Edge V.79 above
- PHYSICAL
- Material / Protection: Metal housing / IP67 Waterproof
- Operating Conditions: Temp: -35~+60°C/ Humidity: less than ≤ 95% RH
- Input Voltage / Current: DC12V / 48V PoE (IEEE802.3af) extended PoE
- Power Consumption:(IR OFF) 3.5W-4.5W (IR ON) 7.5W-9-5W
- Dimension (W x H x D): 135 x 135 x 120 mm (5.3 x 5.3 x 4.7 inches)
- Weight: Approximately 846g (1.86lbs)
