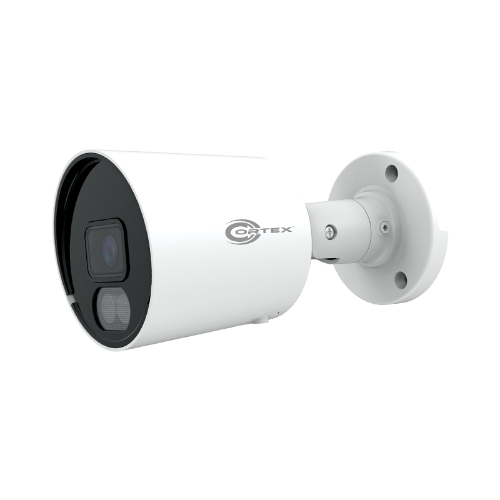

The Cortex® Medallion 4K network camera family has one more member. This 8 megapixel bullet camera delivers a wide-angle image with crystal clear quality from corner to corner in an elegant, well crafted modern housing. Designed for ultra low light areas were color is needed, this model can be switched to color mode while maintaining a low level of noise and low motion distortion. This UHD Network camera outperforms the competition in all lighting conditions.
The Cortex IP8BF adds 6 levels of intelligent analysis that help users determine specific triggers and alerts on a specialized schedule. This puts more power in the programmers hands allowing direct competition with much pricier models.
A Dragonfire® Matrix LED infrared system illuminates areas of complete darkness, while the integrated CMOS can be used with very little illumination and maintain full color saturation when appropriate. When used with Medallion Series NVRs, these 4k network cameras can be adjusted and fine tuned directly from the main monitor interface.
Main Features
- Premium Components and corrosion resistant finish
- Medallion network camera
- Cortex 4K Camera
- Adjustable bracket with lock down screws
- Designed for Ultra low light applications while maintaining color mode
- 8MP 3840(H) × 2160(V) 4k UHD Resolution
- 1/2.5" Progressive CMOS (8.51M pixels)
- 3.6mm IR wide angle lens
- 18pcs (SMD) LEDs Distributed Angle Dark Stealth Cover
- 82 feet (25m) IR Range Dragonfire Matrix
- H.265 / H.264 Video Compression
- Auto switching infrared-cut filter (OSD on / off)
- Multiple adjustable Video Streaming
- IEEE 802.3af / IEEE 802.3at | PoE
- IP66 Waterproof Metal Housing Casing
- Can be used indoor or outdoor
- Open compatibility
- Cortex Medallion apps and software
- Combine with plug and play Medallion Collection Network Recorders Cortex UHD Network camera software and NVR recording
- Resolution: 8MP 3840(H)×2160(V) 4K UHD
- Image Sensor: 1/2.5" Progressive CMOS (8.51M pixels)
- Min. Illumination: Color 0.1lux @ F1.2(AGC ON) ; B/W 0 lux @ IR ON
- Shutter Time: Auto/Manual 1/5 ~ 1/20000s
- Shutter Controls: Active Shutter Controls
- Lens: 3.6mm wide angle lens
- F-Stop: F 2.0 ±5%
- Day&Night: Auto switching infrared-cut filter (OSD on/off)
- WDR: Digital WDR
- Dynamic noise Reduction
- Video Compression: H.265 / H.264
- Video Bit Rate: 8Kbps ~ 8Mbps
- Video Streaming: 3 Individually Adjustable Streams
- Frame Rate:
- Mainstream: 15fps 8MP: (3840x2160),4MP(2592x1520), 3MP(2304x1296),1080P(1920x1080),
720P(1280x720)
- Substeam: 1080P(1920x1080),720P(1280x720),VGA(640x480),QVGA(320x240)
- Mobilestream: VGA(640x480), QVGA(320x240)
- Image Settings:
- Rotate mode, Saturation, Brightness, Contrast, Hue, Sharpness adjustable
- BLC: Support
- ROI: Support
- Privacy Mask: Support
- AI Analytics:
- Cross line Detection, Intrusion Detection, Stationary Object Alert, Pedestrian Detection, Face Detection, Cross Counting
- Protocols:
- TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,PPPoE,
SMTP,NTP,UPnP,SNMP,HTTPS,FTP,
- Compatibility: Open compatibility, API, Cortex Plug&Play
- Network Interface: RJ45 10M / 100M Ethernet Interface
- Illumination: DragonFire® 1pc (Cortex Matrix Array) LED
- IR Range: Up to 82 feet (27m)
- ePTZ: Digital Pan Tilt Zoom
- Alarm Trigger: N/A
- SD Card: Internal
- Audio: N/A
- Connectors: Rj45 and 2.1mm power jack
- Reset System: Software
- PoE: Yes, IEEE 802.3af / IEEE 802.3at
- Casing: Metal housing IP66 Waterproof
- Power Supply: DC 12V / PoE
- Consumption: ≤ 7W
- Storage Temperature: -30~+60°C (-22~+140°F)
- Operating Temperature: -30~+55°C (-22~+131°F)
- Dimension: 77 X 150mm (3 X 5.9 inches)
- Weight: Approximately 1.02 lbs (463g)
- Plug and Play with Cortex Medallion NVRs
- 4K IP camera compatability with 4K NVR
- Cortex UHD Network camera CMS and NVR viewing
