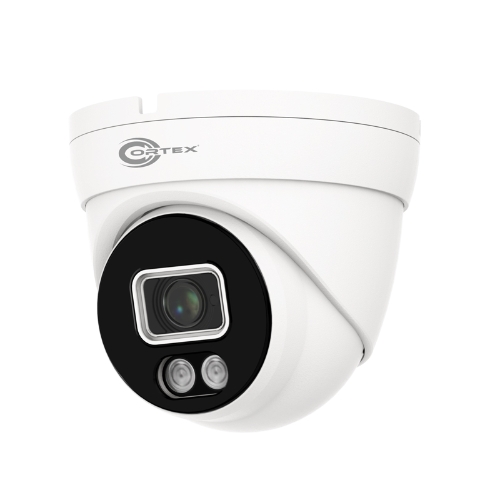

Cortex delivers another great value in the Medallion 4K network camera range. With a very small footprint, this 8 megapixel mini turret dome delivers a wide-angle image with crystal clear quality from corner to corner. Designed for ultra low light areas were color is needed, this model can be switched to color mode while maintaining a low level of noise and low motion distortion. Cortex 4K system CMS and app compatible.
The Cortex® IP8TRF adds 6 levels of intelligent analysis that help users determine specific triggers and alerts on a specialized schedule. This puts allot more power in the programmers hands allowing direct competition with much pricier models. A tinted stealth cover infrared system illuminates areas of complete darkness, while the integrated CMOS can be used with very little illumination and maintain full color saturation when appropriate. When used with Medallion Series NVRs, these 4k UHD network cameras can be adjusted and fine tuned directly from the main monitor area.
- Premium Components and corrosion resistant finish
- Medallion network camera
- 2160p security camera
- Premium Components and corrosion resistant finish
- Designed for Ultra low light applications while maintaining color mode
- 8MP (4K) 3840(H)×2160(V) 4k Resolution 1/2.8"ColorMax CMOS
- Audio Yes, Built in Onboard Microphone
- 2.8 mm wide angle lens
- 98 feet (30m) IR Range
- Full Smart AI features
- LPR and Human Detection
- Dual Lighting
- IEEE 802.3af / IEEE 802.3at | PoE
- IP66 Waterproof Metal Housing Casing
- Can be used indoor or outdoor
- Cortex 4K
- Open compatibility
- Combine with plug and play Medallion Collection Network Recorders
- Video Compression Format:H.265+ / H.265 / H.264
- Resolution: 8MP (4K) 3840(H)×2160(V)
Image Sensor: 1 / 2.8” ColorMax CMOS)
- Min. Illumination: Color 0.007lux @ F1.0 (AGC ON) ;
B/W 0 lux @ IR ON
- Effective Pixels: 8MP (4K) 3840(H)×2160(V)
- Scanning System: Progressive ColorMax CMOS
- LENS TYPE
- Focal Length : 2.8mm wide angle
- Max. Aperture Ratio: F1.0 custom
- Angular Field of View: Horizontal:Horizontal: 105°, Vertical: 55°, Diagonal: 125°
- Min. Object Distance: 2.5 feet
- Lens Type: Fixed wide angle
- OPERATIONAL
- IR LED: 2 Dragonfire
- Warm white light:2 steady or deterrent
- IR Viewable Length: Up to 98 feet (30m)
- Warm Light Viewable Length: Up to 80 feet (25m)
- Type of illumination: Default infrared light, switchable white light
- Backlight Compensation:Off / On (5 Zone)
- Wide Dynamic Range: True WDR 120dB
- Digital Noise Reduction: 3D DNR
- Motion Detection:Off / On (8 Level)
- Image Settings: Full Color Mode / Day&Night Mode / Schedule
- Privacy Masking:Off / On (4 Zone, Rectangle)
- Audio: Built-in microphone
- Hardware Reset: Yes
- Gain Control: Auto
- White Balance: Auto / Manual
- Electronic Shutter Speed: 1/5 ~ 1/20000s
- On-Board Storage: Micro SD slot, up to 256GB
- Alarm base deterrent: Strobe light
- AI Smart Feature:
- License Plate Detection (LPD)
- Face Recognition(FR)
- Human&Vehicle Detection (PD&VD)
- PerimeterIntrusion Detection(PID)
- Line Crossing Detection(LCD) Cross Counting (CC)
- Stationary Object Detection (SOD)
- Heat Map(HM)Crowd Density Detection (CD)
- QueueLength Detection (QD)
- Rare Sound Detection (RSD)
- NETWORK
- IP / Ethernet: IPv6 / RJ45(10/100BASE-T)
- Resolution:
- Mainstream: @30fps 8MP(3840x2160),5MP(2592x1944,3072x1728),
4MP(2592x1520),3MP(2304x1296),1080P (1920x1080),960P(1280*960),720P(1280x720),
- Substeam: @30fps 720P(1280x720),VGA(640x480),QVGA(320x240)
- Mobilestream: @30fps VGA(640x480),VGA(640x480), QVGA(320x240)
- Bitrate control method: CBR/VBR
- Streaming Capability / Method: Triple-Stream (Main/Sub/Mobile) / Unicast / Multicast
- Protocols:
- TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,PPPoE,
SMTP,NTP,UPnP,SNMP,HTTPS,FTP,
- Security: Complex password; authenticated username and password
- Application Programming Interface: Open Compatibility, ( Profile S / G / T)
- Web Viewer:IIE10/11,Safari V12.1 above,Firefox V.52 above,
Google chrome V.57 above,Edge V.79 above
- PHYSICAL
- Material / Protection: Metal housing / IP67 Waterproof
- Operating Conditions: Temp: -35~+60°C/ Humidity: less than ≤ 95% RH
- Input Voltage / Current: DC12V / 48V PoE (IEEE802.3af) extended PoE
- Power Consumption:Variable 1.4w ~ 2.8w
- Dimension (W x H x D): 100 x 100 x 90 mm (3.9 x 3.9 x 3.5 inches)
- Weight:Approximately 415g (.91 lbs)
