H.265 | 8MP Panoramic |
4K
Network Camera | PoE

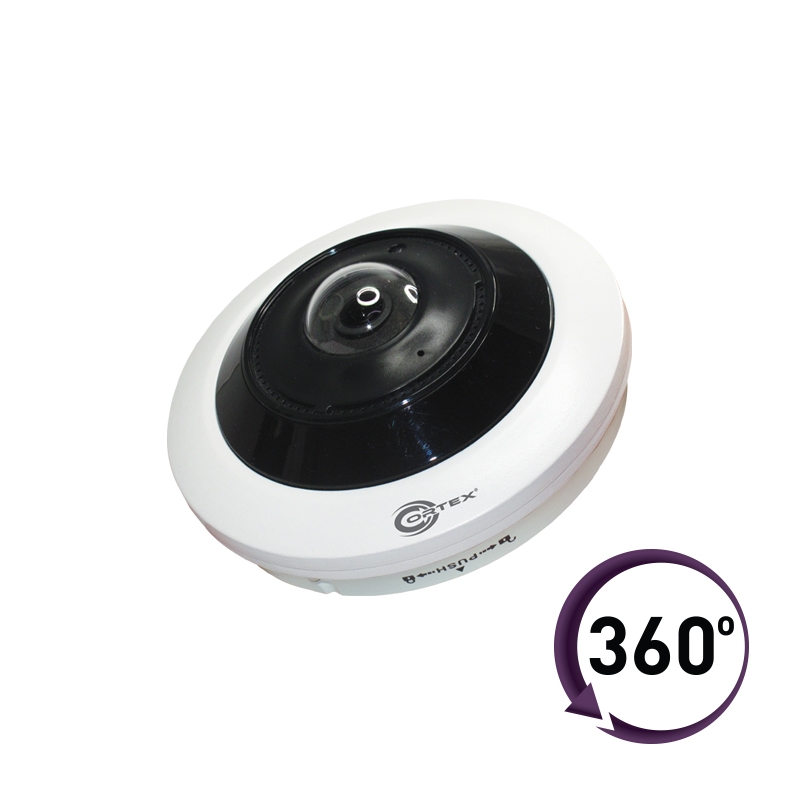

The IP8FISHC indoor fisheye network camera from Cortex is the perfect solution for 360 degree observation using the latest panoramic technology. This rugged IP camera allows users to get a great feel and control of an area while adding features like dewarping and ePTZ that further enhances the user experience. Not only can you move around the image with digital pan tilt zoom controls, you can also perform these tasks while on the go from the comfort of your smart phone or CMS surveillance software.
A multi-channel break out view option allows 4 camera or 9 camera cropped views from a single fisheye camera deployment. The user can then adjust each individual window using ePTZ immersive dewarping. These amazing viewing options are available on live, playback and remote viewing.
The Medallion Fisheye immersive experience is a great tool for business owners and warehouse managers.
Take full advantage of these 8MP fisheye models by complimenting the installation with a Cortex® Medallion series NVR and CMS software.
Main Features
- Fisheye Network Camera for Indoor
- 1/2.5” Progressive CMOS (8.51 pixels)
- 8MP 3840(H) × 2160(V) Resolution
- Cortex® 4k panoramic immersive technology
- 1.1mm Lens with 360° or 180° Angle of Panoramic View
- H.265 / H.264 Video Compression
- On-Board audio designed for weatherproof installations

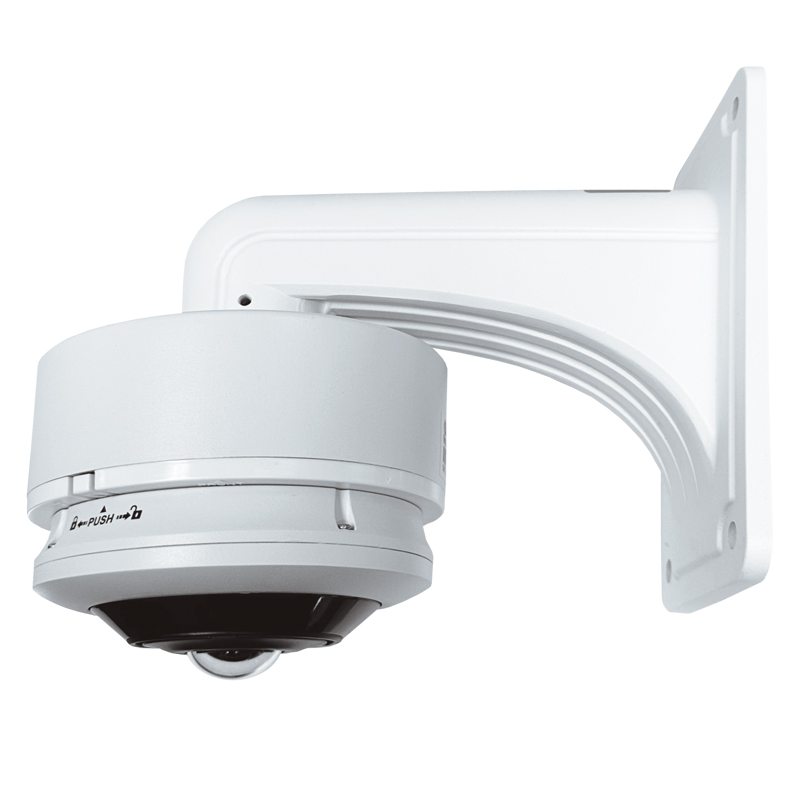

- Selectable mounting options and menu configuration Wall mount, ceiling mount or angled mount
- Premium Components
- On-board audio microphone
- Cortex panoramic immersive technology
- Dewarping Technology on NVR, Smartphone apps and web browser
- IE browser dewarping and ePTZ functions
- 15 feet Radius (5m) IR Range (30 feet diameter)
- Highly sensitive in low light
- IP56 indoor use
- Dynamic Noise Reduction for low light environments
- Auto switching infrared-cut filter (OSD on / off)
- Multiple Adjustable Video Streaming
- SD card slot for edge recording PoE (Power over Ethernet) for easy installation Open compatibility and Cortex Medallion plug and play
- Resolution: 8MP 3840(H)×2160(V) 4K UHD
- Fisheye IP camera with dewarping and ePTZ
- Image Sensor: 1/2.5” Progressive CMOS (8.51 pixels)
- Fisheye IP camera with dewarping and ePTZ
- Min. Illumination: Color 0.1lux @ F1.2(AGC ON) ; B/W 0 lux @ IR ON
- Shutter Time: Auto/Manual 1/5 ~ 1/20000s
- Lens: Panoramic 1.1mm with 360° angle of view
- F-Stop: F 2.0 ±5%
- Day&Night: Auto switching infrared-cut filter (OSD on/off)
- WDR: Digital
- Dynamic noise reduction
- Video Compression: H.265 / H.264
- Video Bit Rate: 8Kbps ~ 8Mbps
- Video Streaming: 3 Individually Adjustable Streams
- Frame Rate:
- Mainstream:8MP (3840x2160),4MP(2592x1520), 3MP(2304x1296),1080P(1920x1080),720P(1280x720)
- Substeam: 1080P(1920x1080),720P(1280x720),VGA(640x480),QVGA(320x240)
- Mobilestream: VGA(640x480), QVGA(320x240)
- Image Settings:
- Image rotate, Saturation, Contrast, Hue, Brightness, Sharpness
- BLC: Supported
- ROI: Supported
- Protocols:
- TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,PPPoE,
SMTP,NTP,UPnP,SNMP,HTTPS,FTP,
- Compatibility: Open compatibility, API, Cortex Plug&Play
- Network Interface: RJ45 10M / 100M Ethernet Interface
- Illumination: 3pcs(SMD)
- IR Range: Up to 15 feet (5m) or 30 feet diameter
- SD Card: Internal
- Alarm Trigger: Yes, Screw Terminal
- Audio: Yes
- On-board audio microphone
- Video Output: Yes
- Reset System: Hardware reset button and software
- PoE: Yes (IEEE 802.3af)
- Casing: IP56 indoor use
- Power Supply: DC 12V or PoE
- Consumption: ≤ 5W
- Storage Temperature: -30~+60°C (-22~+140°F)
- Operating Temperature: -30~+55°C (-22~+131°F)
- Dimension: 120 X 55mm (4.72 X 2.16 inches)
- Weight: Approximately .88 lbs (400g)
Specification Sheet
