IP

H.265 / H264 | 5MP | Network IP |DragonFire® infrared | PoE

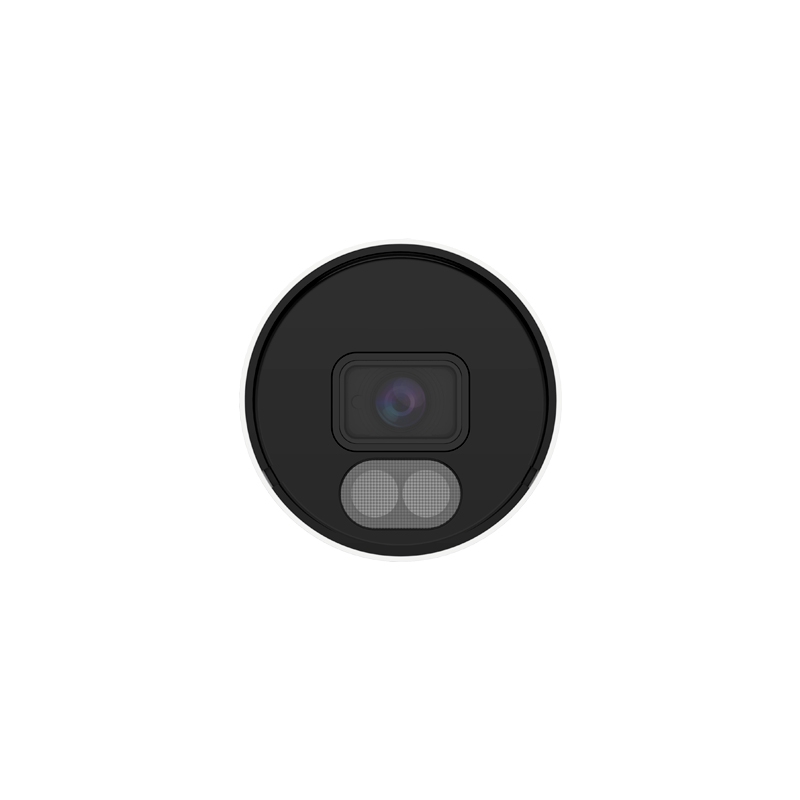

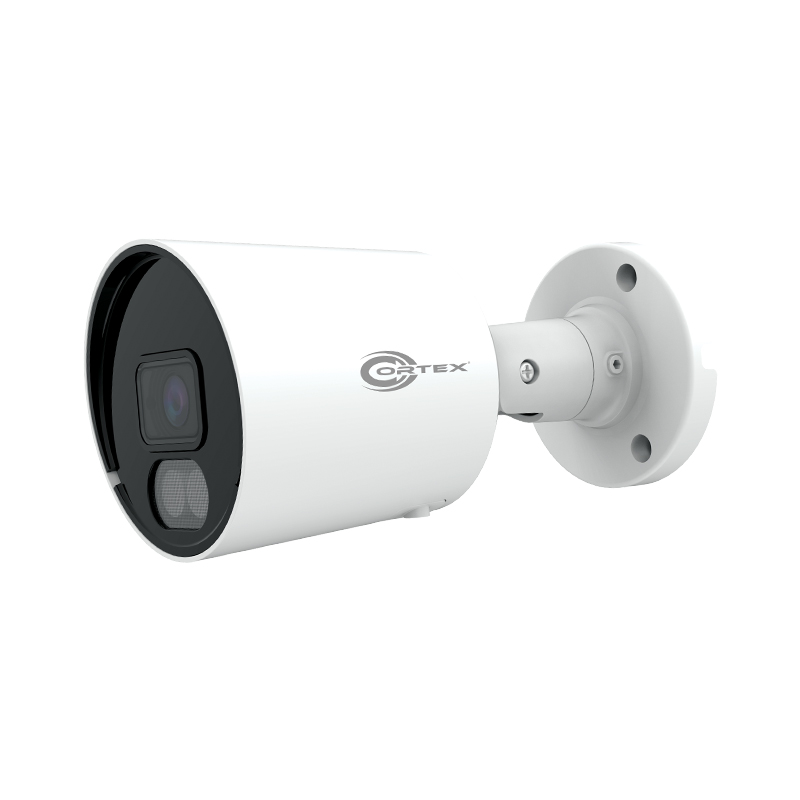

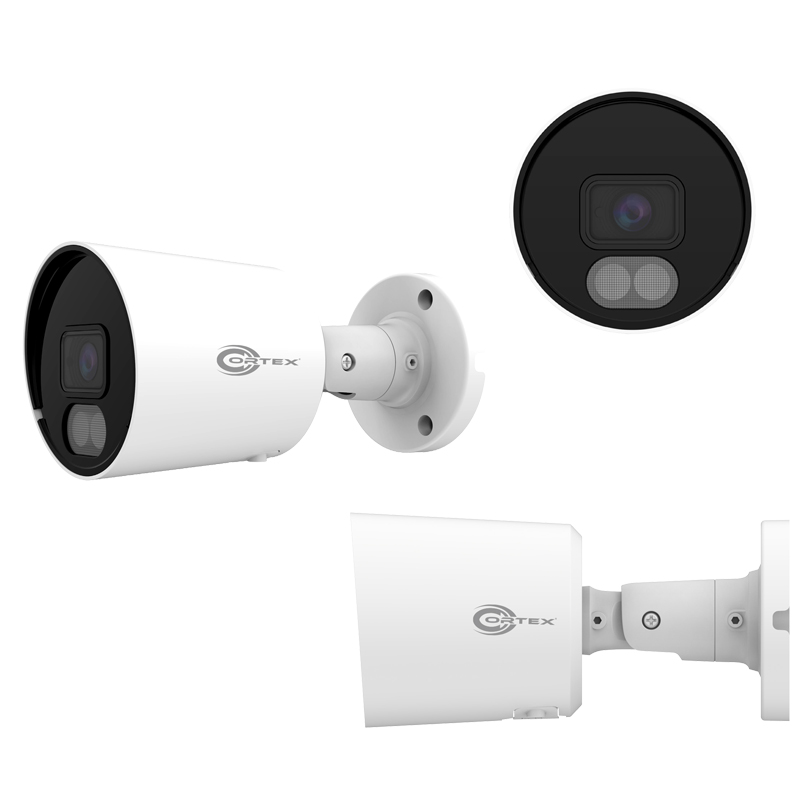

5MP Outdoor IR H.265 Bullet Network Camera with 2.8mm fixed wide angle lens. This Cortex Medallion 5MP bullet network camera is design for fast network installs and unparalleled performance. Starvis and Exmor technology to provide amazing night time shots in full color.

Send Me Prices

Camera:
5 MP, Bullet, Dragonfire®, Fixed Lens, Infrared, IP Network, Outdoor

Get Prices

Price: Login
Points to Purchase:1984
Quantity:
Share this product
Item #: COR-IP5BF
Availability: In Stock
Usually ships In 1-2 Business Days

H.265 / H264 | 5MP | Network IP | PoE | DragonFire® LEDs

This Cortex Medallion 5MP bullet network camera is design for fast network installs and unparalleled performance. Save tons of precious time with the Medallion Network utility tools from Cortex and PoE network technology.

This model is perfect for wide angle viewing and can be used in areas with low illumination. The Sony® CMOS sensor incorporated uses the latest Starvis and Exmor technology to provide amazing night time shots in full color. Whether you're monitoring live or remotely, this Medallion camera will provide the best all around performance and deliver the full power of 5 megapixels to your screen.

The Cortex VMS and CMS software bundles are 128 channel ready which can provide custom design objectives and cost effective prices. Use with Cortex Medallion NVRs and take advantage of all the extra features.

Main Features

  • Premium Components / Technology
  • 5MP 2592(H) × 1944(V) Resolution
  • Medallion Series Network Camera
  • Cortex Camera Advanced GUI1/
  • Intelligent Analitycs
  • 2.9" Sony® Starvis Exmor Progressive CMOS (6.82M pixels)
  • 2.8 mm Lens: H.FOV: 117°H.
  • DragonFire® 2pcs (Cortex Matrix Array) LEDs
  • H.265 / H.264 Video Compression
  • 98.4 feet (30m) IR Range
  • Auto switching infrared-cut filter (OSD on/off)
  • Multiple adjustable Video Streaming
  • IEEE 802.3af / IEEE 802.3at | PoE
  • IP66 Waterproof Metal Housing Casing
  • Remote view: Cortex VMS, Cortex CMS
  • Resolution: 5MP 2592(H) × 1944(V)
  • Image Sensor: 1/2.9" Sony® Exmor Progressive CMOS (6.82M pixels)
  • Min. Illumination: Color 0.1lux @ F1.2(AGC ON) ; B/W 0 lux @ IR ON
  • Shutter Time: Auto/Manual 1/5 ~ 1/20000s
  • Shutter Controls: Active Shutter Controls
  • Lens: 2.8 mm H.FOV: 117°
  • F-Stop: F 2.0 ±5%
  • Day & Night: Auto switching infrared-cut filter (OSD on/off)
  • WDR: Digital
  • Dynamix noise reduction
  • Video Compression: H.265 / H.264
  • Video Bit Rate: 8Kbps ~ 8Mbps
  • Video Streaming: 3 Individually Adjustable Streams
  • Frame Rate:
    • Mainstream: Up to 15fps,5MP(2592×1944),4MP(2592x1520), 3MP(2048x1520)(2034x1296),1080P(1920x1080),960P(1280x960), 720P(1280x720)
    • Substeam: 720P(1280x720),VGA(640x480),QVGA(320x240)
    • Mobilestream: VGA(640x480), QVGA(320x240)
  • Image Settings:
    • Rotate mode, Saturation, Brightness, Contrast, Hue, Sharpness adjustable
  • BLC: Supportrd
  • ROI: Supported
  • Privacy Mask: Supported
  • AI Analytics:
    • Cross line Detection, Intrusion Detection, Stationary Object Alert, Pedestrian Detection, Face Detection, Cross Counting
  • Protocols:
    • TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,PPPoE, SMTP,NTP,UPnP,SNMP,HTTPS,FTP,
  • Compatibility: ONVIF®, API, Cortex Plug&Play
  • Network Interface: RJ45 10M / 100M Ethernet Interface
  • Remote view: web browser, Cortex VMS, Cortex CMS
  • Illumination: 18pcs (SMD) Distributed Angle Stealth Cover
  • IR Range: Up to 98.4 feet (30m)
  • SD storage: No
  • Alarm Trigger: No
  • Audio: No
  • Connectors: Rj45 and 2.1mm power jack
  • Reset System: Software
  • PoE: Yes, IEEE 802.3af / IEEE 802.3at
  • Casing: Metal housing IP66 Waterproof
  • Power Supply: DC 12V / POE
  • Consumption: ≤ 7W
  • Storage Temperature: -30~+60°C (-22~+140°F)
  • Operating Temperature: -30~+55°C (-22~+131°F)
  • Dimension: Ø84 X 241 mm (Ø3.3 X 9.48 inches)
  • Weight: Approximately 1.02 lbs (463g)
  • Specification Sheet
