Cortex Security IP Dome | Full AI for Advanced Detection | Smart Phone Controls | Deterrent Options

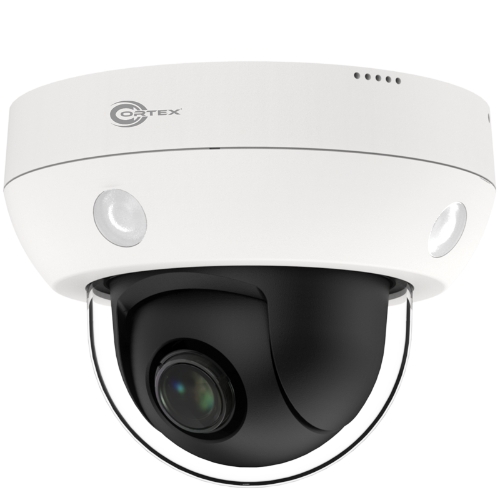

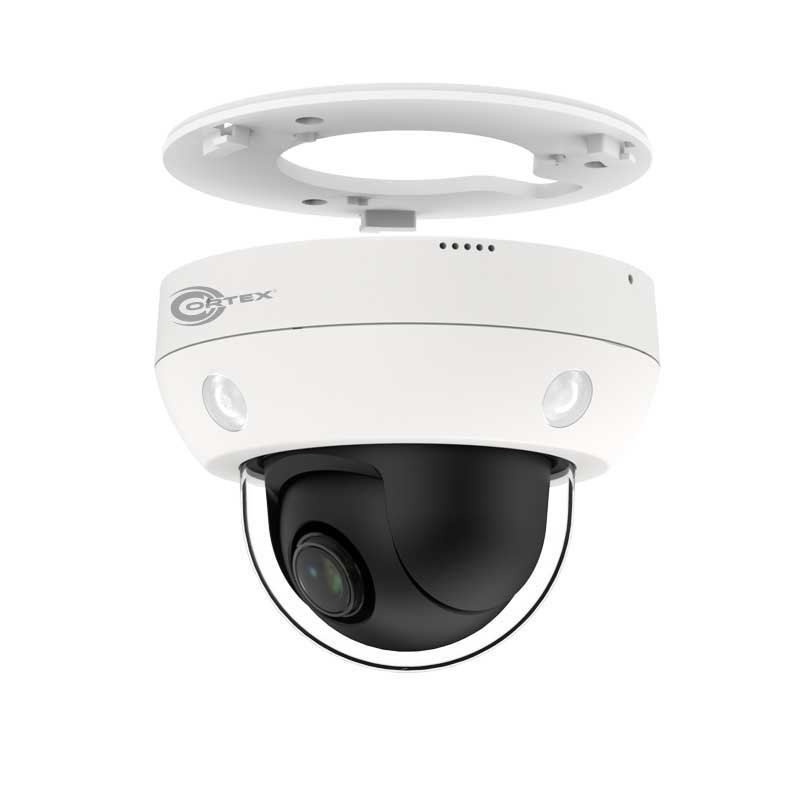

The 4MP network PTZ dome cameras from the Cortex® ColorMax Series are perfect for regular business usage and powerful enough for demanding industrial tasks, even in low-light settings. Allows for the preproduction of clear, vibrant color videos in challenging circumstances that would often be insurmountable for conventional surveillance cameras.
The development of Cortex cameras for use in network backbones has greatly improved industrial and commercial surveillance applications. Cortex ColorMax Solutions can be effectively utilized widely, such as manufacturing plants, warehouses, construction sites, transportation hubs, or any other settings that require robust video surveillance capabilities in challenging environments. Users get the best value for their money with network cameras made with the current generation of high-grade components and housings that are resistant to corrosion. Simple, plug-and-play interoperability with third-party VMS software that supports open compatibility or Cortex 4K network video recorders.

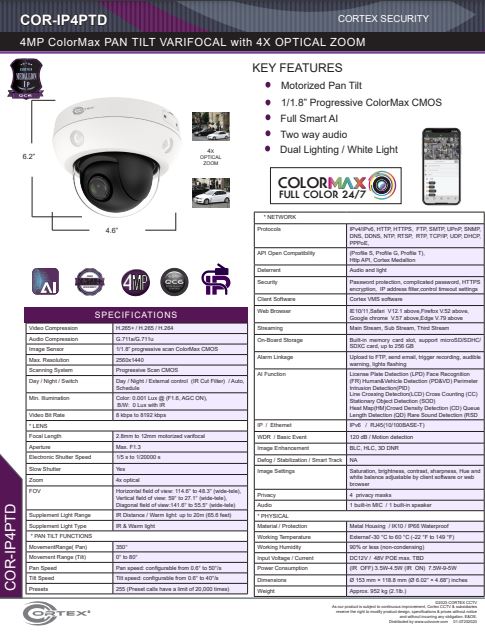

Main Features
- 4MP Optical Zoom Low Light IP Camera
- 1/1.8” progressive scan ColorMax CMOS sensor
- 2.8mm to 12mm motorized varifocal lens
- Motorized Pan Tilt mechanism
- Full Smart AI
- H.265+ / H.265 / H.264 Video Compression
- Two way audio
- Dual Lighting / White Light or Infrared
- IP66 Waterproof Metal Housing Casing
- IR Range: IR Distance / Warm light: up to 20m (65.6 feet)
- Cortex® Security hardware and Software
- Video Compression Format:H.265+ / H.265 / H.264
- Audio Compression: G.711a/G.711u
- 1/1.8” progressive scan ColorMax CMOS
- Max. Resolution 2560x1440
- Scanning System Progressive Scan CMOS
- Day / Night / Switch : Day / Night / External control (IR Cut Filter) / Auto,
Schedule
- Min. Illumination: Color: 0.001 Lux @ (F1.6, AGC ON),
B/W: 0 Lux with IR
- Video Bit Rate: 8 kbps to 8192 kbps
- LENS
- Focal Length: 2.8mm to 12mm motorized varifocal lens
- Aperture: Max. F1.3
- Electronic Shutter Speed: 1/5 s to 1/20000 s
- Slow Shutter: Yes
- Zoom: 4x optical
- Angular Field of View: Horizontal field of view: 112.6° to 47.3° (wide-tele),
Vertical field of view: 59° to 27.1° (wide-tele),
Diagonal field of view:141.6° to 55.5° (wide-tele)
- Supplement Light Range: IR Distance / Warm light: up to 20m (65.6 feet)
- Supplement Light Type: IR & Warm light
- * PAN TILT FUNCTIONS
- Movement Range( Pan): 350°
- Movement Range: (Tilt) 0° to 80°
- Pan Speed: Pan speed / configurable from 0.6° to 50°/s
- Tilt Speed: Tilt speed/ configurable from 0.6° to 40°/s
- Presets: 255 (Preset calls have a limit of 20,000 times)
- NETWORK
- Protocols:
- TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, PPPoE,
SMTP,NTP, UPnP, SNMP, HTTPS, FTP,
- API Open Compatibility: (Profile S, Profile G, Profile T),
Http API, Cortex Medallion
- Deterrent: Audio and light
- Security: Password protection, complicated password, HTTPS
encryption, IP address filter, control timeout settings
- Client Software: Cortex VMS software
- Web Browser: IE10/11,Safari V12.1 above, Firefox V.52 above,
Google chrome V.57 above, Edge V.79 above
- Streaming: Main Stream, Sub Stream, Third Stream
- On-Board Storage: Built-in memory card slot, support microSD/SDHC/
SDXC card, up to 256 GB
- Alarm: Linkage Upload to FTP, send email, trigger recording, audible
warning, lights flashing
- AI Smart Feature:
- License Plate Detection (LPD)
- Face Recognition(FR)
- Human & Vehicle Detection (PD&VD)
- Perimeter Intrusion Detection(PID)
- Line Crossing Detection(LCD) Cross Counting (CC)
- Stationary Object Detection (SOD)
- Heat Map(HM) Crowd Density Detection (CD)
- Queue Length Detection (QD)
- Rare Sound Detection (RSD)
- IP / Ethernet: IPv6 / RJ45(10/100BASE-T)
- WDR / Basic Event: 120 dB / Motion detection
- Image Enhancement: BLC, HLC, 3D DNR
- Defog / Stabilization / Smart Track: NA
- Image Settings: Saturation, brightness, contrast, sharpness, Hue and
white balance adjustable by client software or web
browser
- Privacy: 4 privacy masks
- Audio: 1 built-in MIC / 1 built-in speaker
- NDAA and FCC compliant
- PHYSICAL
- Material / Protection: Metal housing / IP67 Waterproof
- Working Temperature: External’-30 °C to 60 °C (-22 °F to 149 °F)
- Working Humidity: 90% or less (non-condensing)
- Input Voltage / Current: DC12V / 48V POE max.
- Power Consumption:(IR OFF) 3.5W-4.5W (IR ON) 7.5W-9-5W
- Dimension (W x H x D): Ø 153 mm × 118.8 mm (Ø 6.02” × 4.68”) inches
- Weight: Approx. 952 kg (2.1lb.)
