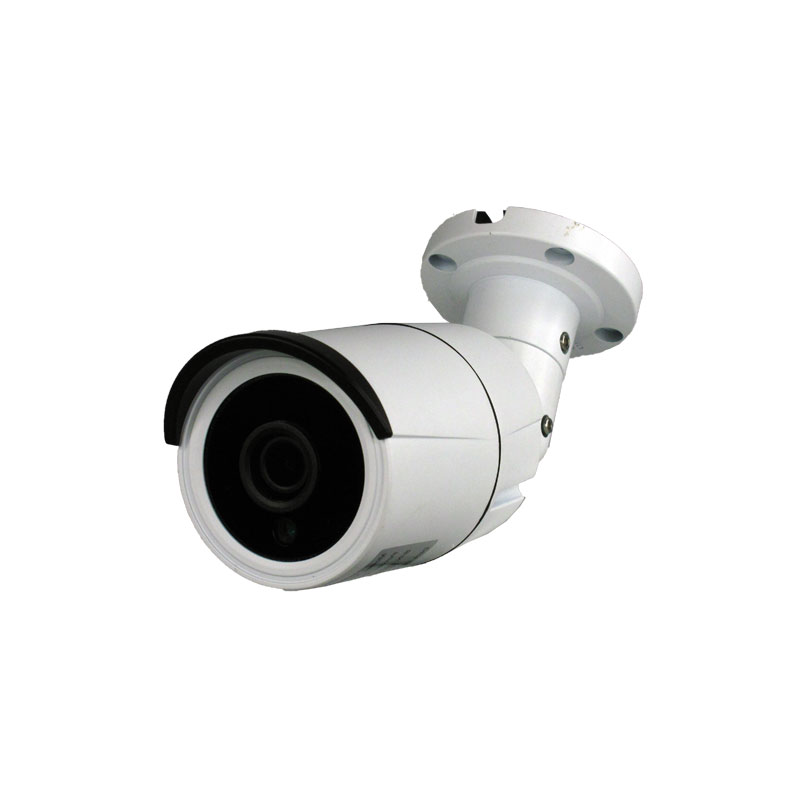

The COR-HF97 outdoor infrared bullet is designed for extremely high performance and reliability.
AHD

AHD 1080P | Analog | Waterproof

The COR-HF97 outdoor infrared bullet is designed for extremely high performance and reliability. The heavy duty aluminum-alloy base provides a cable feed-through path that protects the video and power cables from being vandalized. A cable access notch is provided in installation cases when wall access is impossible and must be flush mounted.

See specifications for technical descriptions and features.

Send Me Prices

Camera:
1080p, AHD, Bullet, Fixed Lens, Hybrid, Infrared, Outdoor

Get Prices

Price: Login
Points to Purchase:650
Quantity:
Share this product
Item #: COR-HF97
Availability: Back Order

Hybrid AHD and Analog Bullet Camera with 100 feet IR Range

The COR-HF97 outdoor infrared bullet is designed for extremely high performance and reliability. The heavy duty aluminum-alloy base provides a cable feed-through path that protects the video and power cables from being vandalized. A cable access notch is provided in installation cases when wall access is impossible and must be flush mounted.

  • Video Sensor: 1/2.7” AR0237CS
  • Resolution: 1920(H) x 1080(V)
  • Lens: 3.6mm lens
  • Min. Illumination: 0.01Lux (F1.2. AGC ON). 0 Lux with IR
  • Video Output: 1CH BNC Output
  • White Balance: AWB
  • IR Range: 90 feet
  • Electronic Shutter: AUTO/ 1/50(1/60)-1/50,000sec
  • Video: Standard AHD 1080P / TVI 1080P / CVI 1080P / CVBS 960H
  • Frame Rate: 25FPS (PAL) / 30FPS(NTSC)
  • D/N: Ext / Auto / Color / BW (switch by OSD menu)
  • OSD: Support
  • Advanced Function: DWDR, 2D/3D DNR
  • Image System: PAL / NTSC
  • 4 in 1 Function Long press OSD direction button for 5 seconds to switch video mode among TVI AHD CVI and CVBS. [UP:CVBS.] [DOWN:CVI.] [RIGHT:TVI.] [LEFT:AHD.]
  • Weatherproof Rating: IP66 (indoor/outdoor)
  • Vandal Resistance: Hardened case, cable feed-through
  • Power: DC 12V
  • Power supply: 3W
  • Operation Temperature: -4°F ~ +122°F / -20°C ~ +50°C
  • Operation humidity: 10%--90%
  • Dimension:
    • (Inches) 7.37”(L) x 2.51”(W) x 2.51”(H)
    • (Meters) (187.34mm (L) x 63.9mm(W) x 64mm(H)
  • Weight: 0.99 (lbs) 450(g)
  • Video Sensor: 1/2.7” AR0237CS
  • Resolution: 1920(H) x 1080(V)
  • Lens: 3.6mm lens
  • Min. Illumination: 0.01Lux (F1.2. AGC ON). 0 Lux with IR
  • Video Output: 1CH BNC Output
  • White Balance: AWB
  • IR Range: 90 feet
  • Electronic Shutter: AUTO/ 1/50(1/60)-1/50,000sec
  • Video: Standard AHD 1080P / TVI 1080P / CVI 1080P / CVBS 960H
  • Frame Rate: 25FPS(PAL) / 30FPS (NTSC)
  • D/N: Ext / Auto / Color / BW (switch by OSD menu)
  • OSD: Support
  • Advanced Function: DWDR, 2D / 3D DNR
  • Image System: PAL / NTSC
  • 4 in 1 Function Long press OSD direction button for 5 seconds to switch video mode among TVI AHD CVI and CVBS. [UP:CVBS.] [DOWN:CVI.] [RIGHT:TVI.] [LEFT:AHD.]
  • Weatherproof Rating: IP66 (indoor/outdoor)
  • Vandal Resistance: Hardened case, cable feed-through
  • Power: DC 12V
  • Power supply: 3W
  • Operation Temperature: -4°F ~ +122°F / -20°C ~ +50°C
  • Operation humidity: 10%--90%
  • Dimension:
    • (Inches) 7.37”(L) x 2.51”(W) x 2.51”(H)
    • (Meters) (187.34mm (L) x 63.9mm(W) x 64mm(H)
  • Weight: 0.99 (lbs) 450(g)

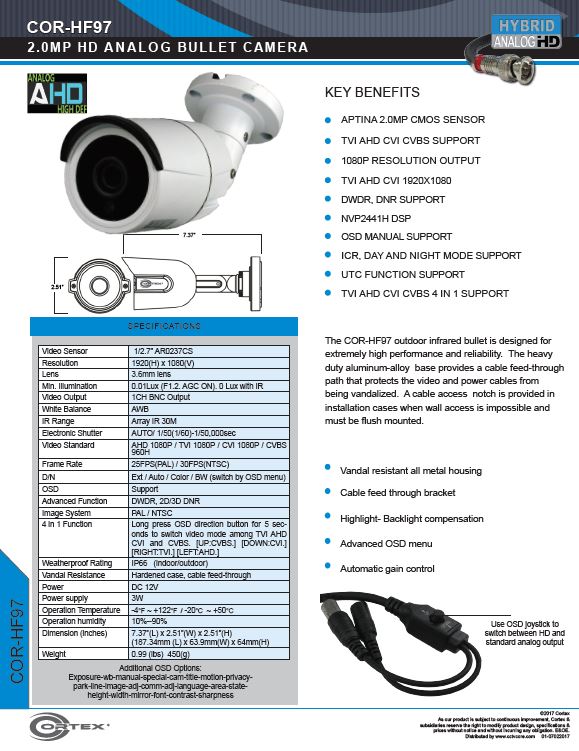

  • Specification Sheet
