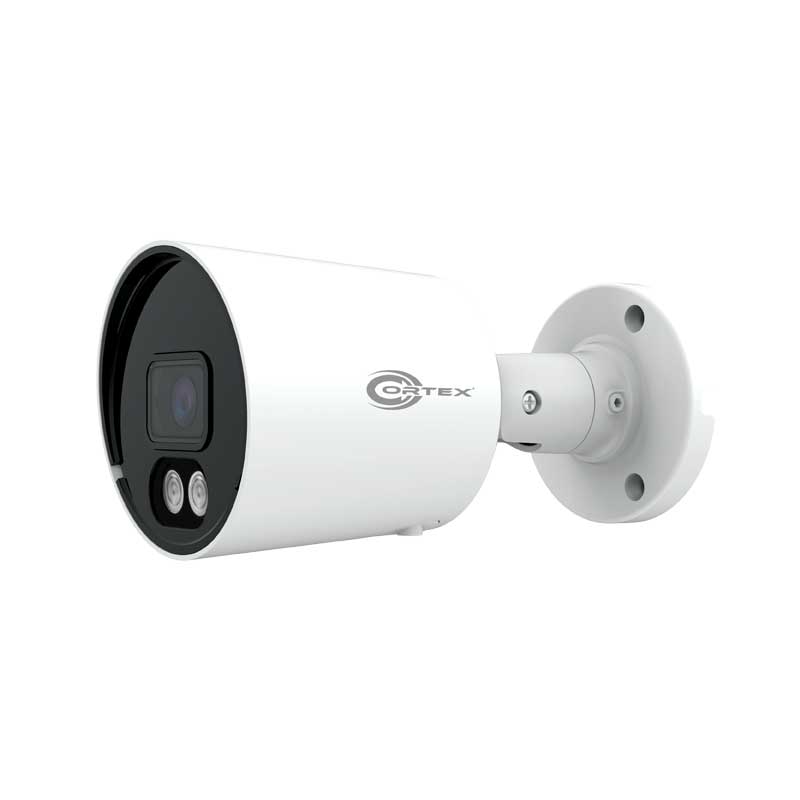

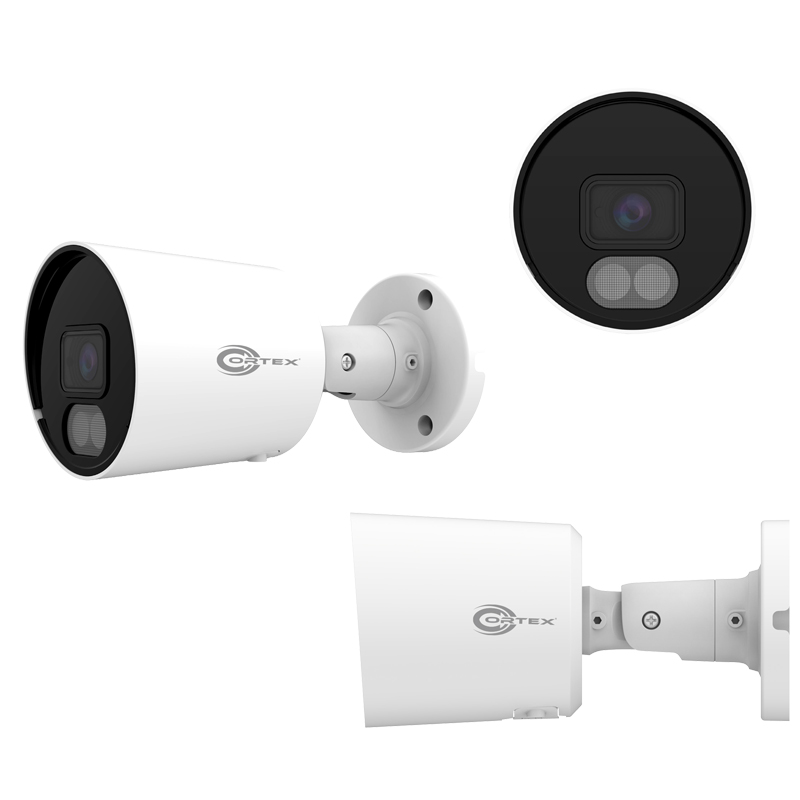

AHD | TVI | CVI | 5MP & 4MP | 2K HD Camera | ColorMAX 24/7 Color | Audio over coax
5MP over coax using AHD or TVI is a great way to use existing cable runs in order to upgrade to a higher resolution. Cortex 5MP cameras are affordable and long lasting in outdoor environments. These models can be installed for residential and commercial applications and pair perfectly with Cortex Medallion Series Hybrid DVRs in 5MP lite or 5MP FULL performance 4k models.
Send Me Prices
Main Features
- 1/2.7” CMOS
- 2.8 mm fixed focus mp rated lens
- IR Cut Filter
- Dual lighting - ColorMAX and IR
- Audio over Cooax
- OSD support
- DWDR
- 5MP 2592 (H) × 1944( V)
- Ultra High sensitivity
- Includes interline HDR image synthetic algorithm that expands Dynamic Range up to 100dB

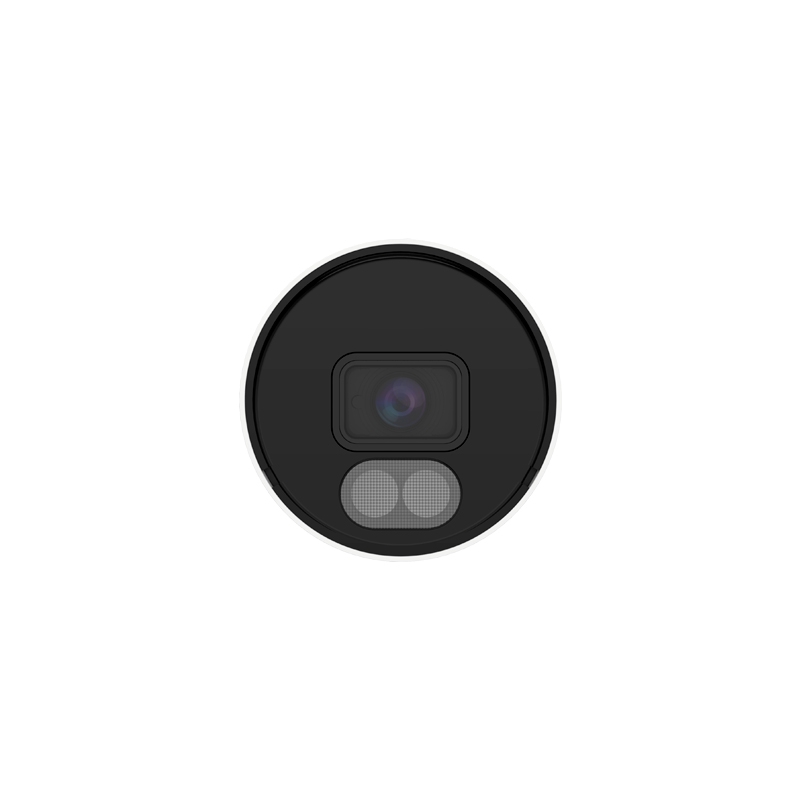

- Stealth Infrared cover for aesthetic style
- High signal to noise ratio SNR：39dB
- Sensitivity：2800mV/Lux
- Min. Illumination: Color 0.04lux B/W with IR 0 Lux
- Improved infrared quantum efficiency in the range of 850nm-940nm
- Shutter Speed Control : OSD
- AGC Adjustment : OSD
- White Balance : ATW /
- NTSC / PAL
- 5MP AHD / 5MP TVI @20fps
- 4MP AHD / 4MP TVI @30fps
- 2MP CVI @30fps
- 960H Analog legacy @30fps
