Sony™ Sensor, OSD, More

Using a Sony ExVIEW HAD II video sensor and EFFIO signal process, this full-size CCTV security camera packs a formidable punch. It provides 700-TV line resolution (or greater)at day and night and has an easy-to-understand OSD menu for fine tuning.

Megapixel Lens Compatible

Use a standard C-mount or CS-mount lens or a new megapixel lens with this camera thanks to an industry standard lens mount (C-ring provided).

Full Featured OSD Menu

This camera has dozens of user-friendly features. Using the OSD menu (and the controls conveniently located on the back of the camera) you can make adjustments to white balance, shutter, iris, video quality and more.

Camera:
960H, Full Size, Indoor, Infrared, Zoom Lens

Get Prices

Price: Login
Points to Purchase:0
Share this product
Item #: ECL-553HD
Availability: Discontinued notify me

Sony™ Sensor, OSD, More

Using a Sony ExVIEW HAD II video sensor and EFFIO signal process, this full-size CCTV security camera packs a formidable punch. It provides 700-TV line resolution (or greater)at day and night and has an easy-to-understand OSD menu for fine tuning.

Megapixel Lens Compatible

Use a standard C-mount or CS-mount lens or a new megapixel lens with this camera thanks to an industry standard lens mount (C-ring provided).

Full Featured OSD Menu

This camera has dozens of user-friendly features. Using the OSD menu (and the controls conveniently located on the back of the camera) you can make adjustments to white balance, shutter, iris, video quality and more. The menu also includes a reset selection that initiates PrePro (Pre-Programmed by professionals) function, which sets the camera to optimum level for most surveillance environments.

Additional Features

A built-in microphone captures sound at the camera location. Auto-iris control electronics are built-in, with the standard port on the back of the camera.

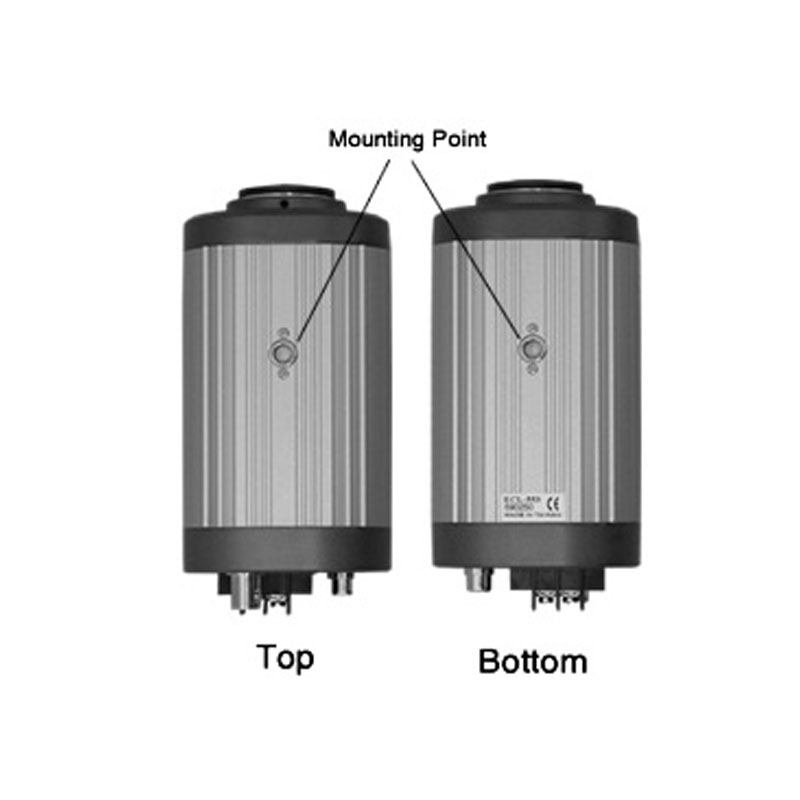

The camera fits inside most outdoor enclosures designed to hold full size security cameras.

Main Features

  • 1/3" color Sony™ ExVIEW HAD II CCD video sensor
  • EFFIO™ digital signal processing chipset
  • 700-TV line resolution or more
  • Effective pixels:
    • NTSC: 768 x 494 (379k)
    • PAL: 752 x 582 (437k)
  • 0.01 LUX minimum illumination, f1.2
  • 1/3" color Sony™ ExVIEW HAD II CCD video sensor
  • EFFIO™ digital signal processing chipset
  • 700-TV line resolution or more
  • Effective pixels:
    • NTSC: 768 x 494 (379k)
    • PAL: 752 x 582 (437k)
  • 0.01 LUX minimum illumination, f1.2
  • Full OSD menu with many operating parameter selections including AES, ATR, AGC, BLC, HLC, slow shutter and more.
  • C or CS- mount lens compatible (C-ring provided)
  • MEGAPIXEL LENS compatible
  • Dual Power: 12VDC or 24VAC
  • Operating temperature: -10°C - 50°C (14°F - 122°F)
  • Weight: 400g (14.1oz)
