Perfect for CCTV Camera Projects

This mini color camera is designed for hidden camera projects. It's an indoor camera, so if you want your kit to go outside you'll need to weatherproof it (doing so will void the warranty of this camera, by the way).

Replaceable Lens

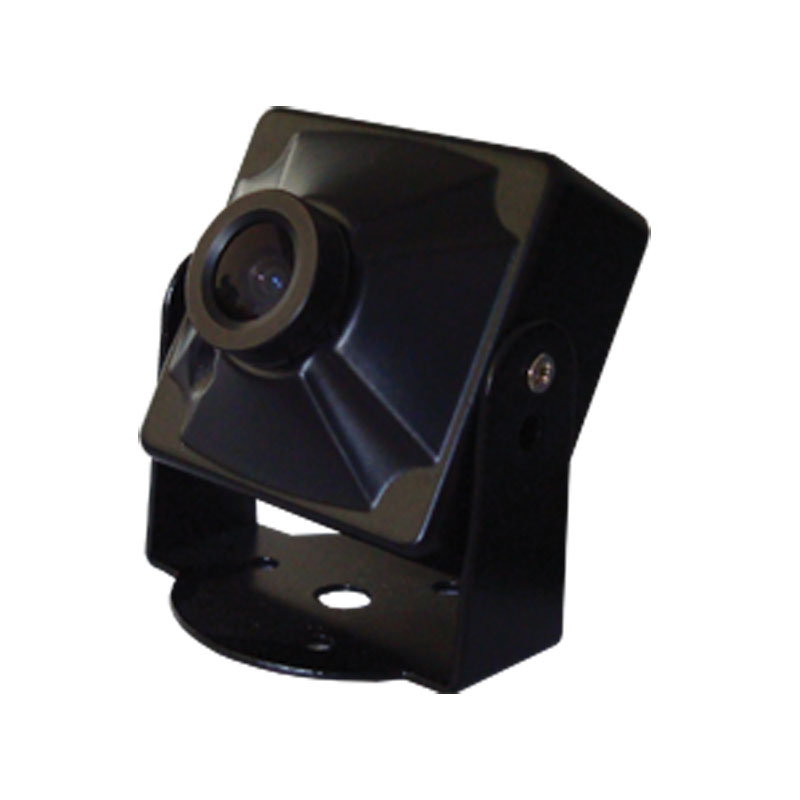

An COR-554P is shown at left. It comes equipped with a 3.6mm pinhole style lens.

The COR-554 has a regular, non-pinhole lens.

Aside from the difference in the lens, both models are identical.

Camera:
960H, Board, Fixed Lens, Indoor

Get Prices

Price: Login
Points to Purchase:0
Share this product
Item #: ECL-554
Availability: Discontinued notify me

Perfect for CCTV Camera Projects

This mini color camera is designed for hidden camera projects. It's an indoor camera, so if you want your kit to go outside you'll need to weatherproof it (doing so will void the warranty of this camera, by the way).

Replaceable Lens

An COR-554P is shown at left. It comes equipped with a 3.6mm pinhole style lens.

The COR-554 has a regular, non-pinhole lens.

Aside from the difference in the lens, both models are identical.

Main Features

  • 1/4" color DSP CCD video sensor
  • 3.6mm wide angle lens
  • 420 horizontal TV lines
  • Effective pixels:
    • NTSC: 512 x 492 (251k)
    • PAL: 512 x 582 (297k)
  • Minimum illumination 0.3 Lux
  • Auto-electronic shutter
  • Auto-white balance
  • 1/4" color DSP CCD video sensor
  • 3.6mm wide angle lens
  • 420 horizontal TV lines
  • Effective pixels:
    • NTSC: 512 x 492 (251k)
    • PAL: 512 x 582 (297k)
  • Minimum illumination 0.3 Lux
  • Auto-electronic shutter
  • Auto-white balance
  • Power: 12VDC (110mA) (Regulated power supply recommended for best results.)
  • Attached power/video cables included.
  • Available with pinhole lens (COR-554P).

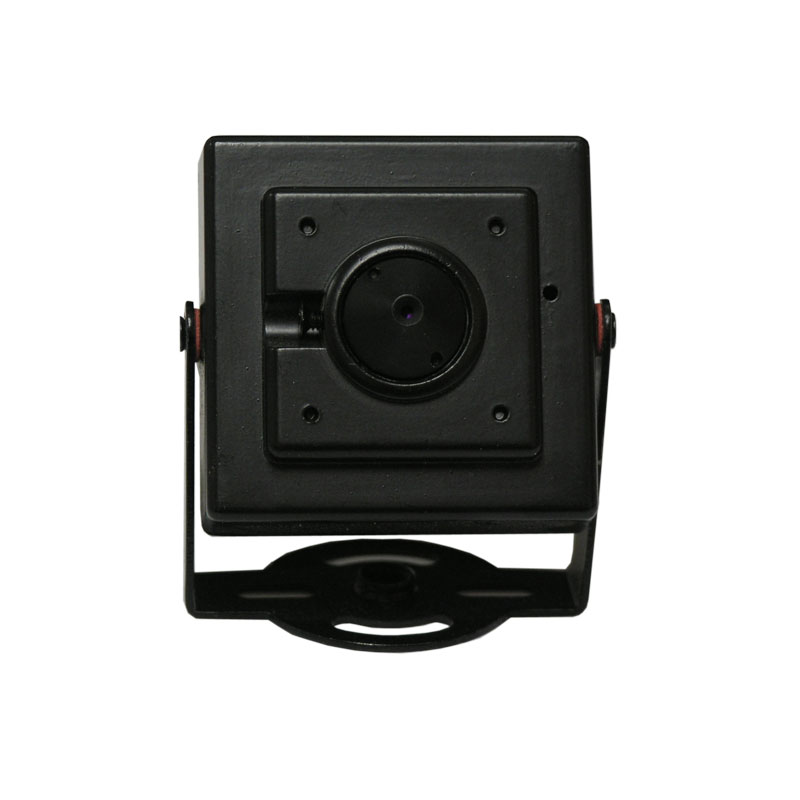

  • Available with conical pinhole lens and a Sony video sensor (COR-554CN).
