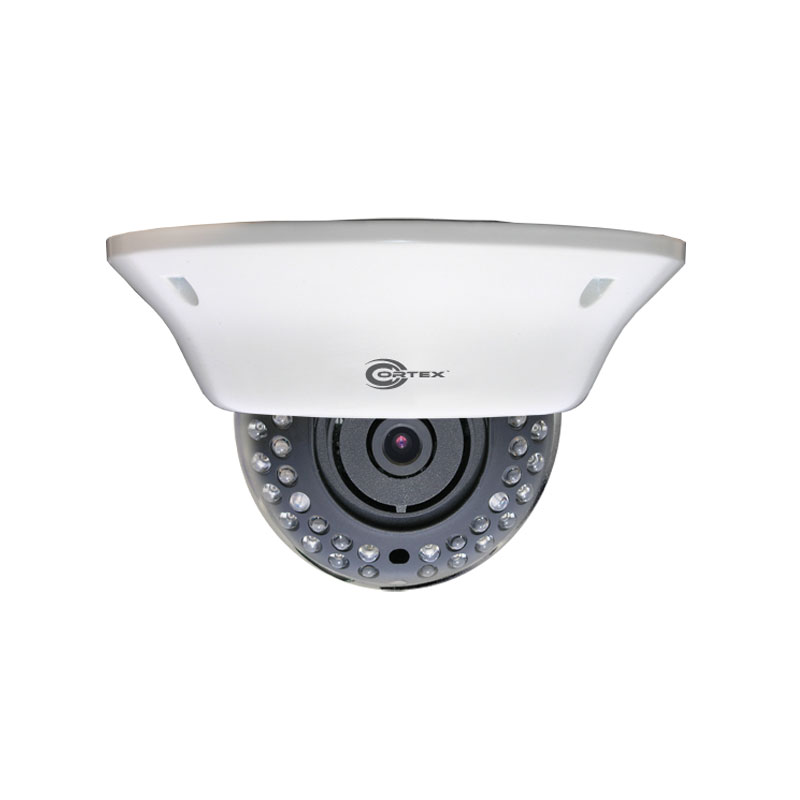

This infrared equipped outdoor dome camera has an impact resistant dome and a tough aluminum alloy one-piece base. A varifocal lens coupled with a high resolution video sensor work together to provide a crisp, sharp image at 480 TV lines. "IR mode" is automatic and turns on when the light level drops below a set threshold the user can adjust. Infrared haze or "glare" is eliminated thanks to advanced construction, careful design and materials used for the optically clear dome. A mechanical IR filter and aspherical lens work together to eliminate IR focus shift.

Mechanical IR Filter

When a camera switches between normal mode and IR mode the wavelength of light reaching the camera optics changes. This wavelength alteration causes a phenomenon known as "focus shift" and manifests itself as a slightly out-of-focus image. By employing a mechanical IR filter focus shift is corrected.

Camera:
960H, Dome, Fixed Lens, Infrared, Outdoor

Get Prices

Price: Login
Points to Purchase:0
Share this product
Item #: ECL-557ID
Availability: Discontinued notify me

This infrared equipped outdoor dome camera has an impact resistant dome and a tough aluminum alloy one-piece base. A varifocal lens coupled with a high resolution video sensor work together to provide a crisp, sharp image at 480 TV lines. "IR mode" is automatic and turns on when the light level drops below a set threshold the user can adjust. Infrared haze or "glare" is eliminated thanks to advanced construction, careful design and materials used for the optically clear dome. A mechanical IR filter and aspherical lens work together to eliminate IR focus shift.

Mechanical IR Filter

When a camera switches between normal mode and IR mode the wavelength of light reaching the camera optics changes. This wavelength alteration causes a phenomenon known as "focus shift" and manifests itself as a slightly out-of-focus image. By employing a mechanical IR filter focus shift is corrected.

Deterrent Strobe LED

Along with its many other technological enhancements, this dome camera is equipped with a bright white deterrence LED that can be set to a flashing state (or turned off). This bright "strobe" makes the camera impossible to overlook, especially at night. It also doubles as a power indicator and can draw attention to your business or location at night. When would-be criminals realize a building or room has CCTV cameras, they are likely to look elsewhere for an easier target. This strobing LED can be turned off by the user.

Main Features

  • 1/3" color CCD video sensor
  • 480-TV line
  • Effective pixels: NTSC: 768 x 494 (379k), PAL: 752 x 582 (437k)
  • 3.6mm lens
  • 28 infrared LEDs
  • Automatic mechanical IR filter
  • Weatherproof
  • Internal 3-axis bracket
  • 1/3" color CCD video sensor
  • 480-TV line
  • Effective pixels: NTSC: 768 x 494 (379k), PAL: 752 x 582 (437k)
  • 3.6mm lens
  • 28 infrared LEDs
  • Automatic mechanical IR filter
  • Deterrence LED
  • Minimum illumination 0.0 LUX with IR on
  • Auto electronic shutter (AES)
  • Auto-gain (AGC)
  • Auto-white balance (AWB)
  • Backlight compensation (BLC)
  • Weatherproof
  • Designed to be hard to grip
  • Hardened, tamper resistant base
  • Power: 12VDCwith over-voltage tolerance
  • Internal 3-axis bracket
  • Colors: WHITE
