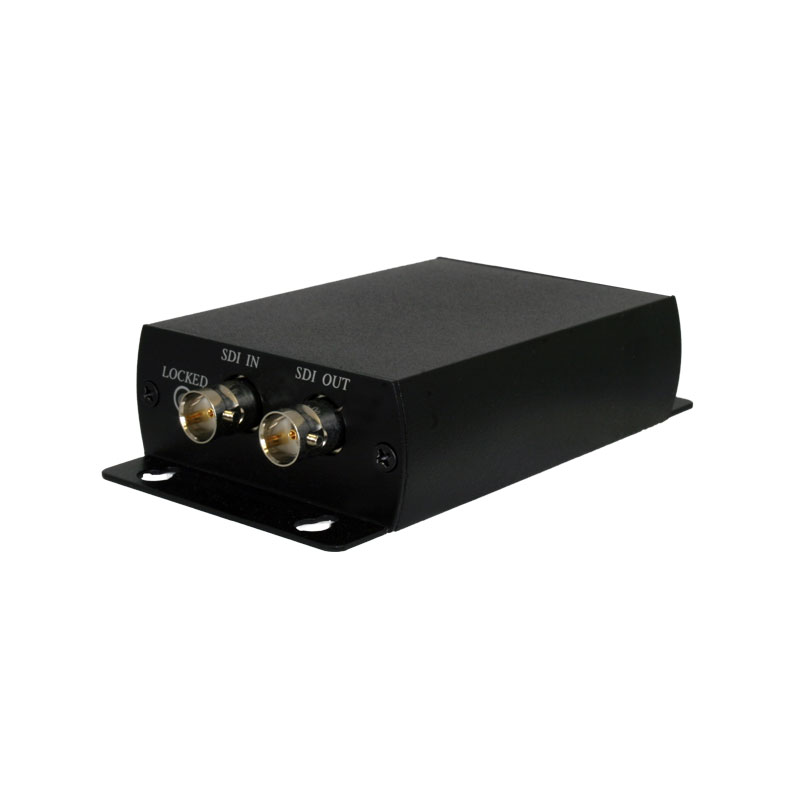

COR-HDR1 converts from 3G-SDI, HD-SDI and SD-SDI to HDMI which enabling users to use cost effective HDMI display to SDI based equipment. It also provides 2 channel stereo audio. The application could be using for HD CCTV HD-SDI camera and broadcast video monitoring..

  • To send 3G/HD/SDI signal convert to HDMI
  • Support SDI (SMPTE 259m), HD-SDI (SMPTE 292m), 3G-SDI (SMPTE 424M)
  • Support video signal NTSC, PAL, 720P, 1080I, 1080P
  • Built in equalizer to increase the working distance and signal reliability
  • SDI loop out with retiming function to have the best output quality
  • Support HDMI 7.1 channel audio

See specifications for technical descriptions and features.

Send Me Prices

Video Baluns:
BNC, Converter, HTMI, SDI, UTP

3G-SDI / HD-SDI / SD-SDI To HDMI Converter from Cortex® specifications for this accessory product COR-HDR1

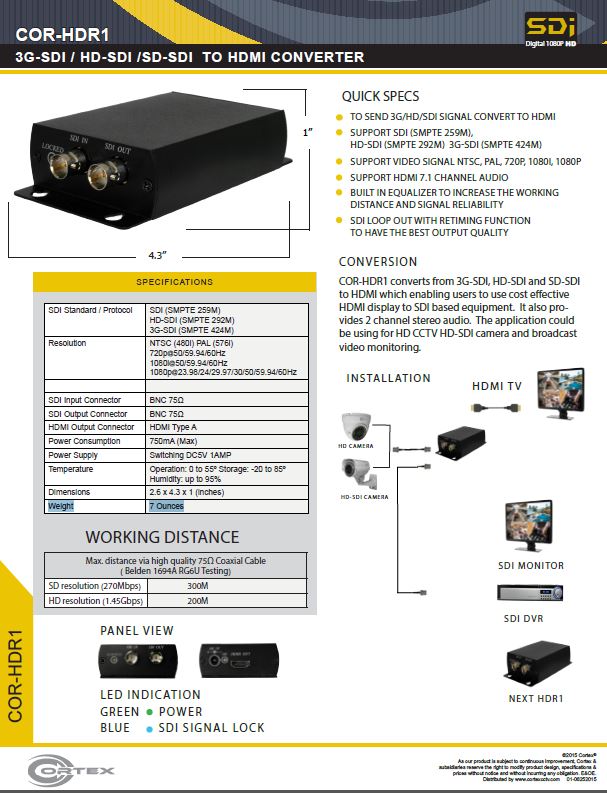

Specification Sheet

Get Prices

Price: Login
Points to Purchase:1634
Share this product
Item #: COR-HDR1
Availability: In Stock
Usually ships In 1-2 Business Days

COR-HDR1 converts from 3G-SDI, HD-SDI and SD-SDI to HDMI which enabling users to use cost effective HDMI display to SDI based equipment. It also provides 2 channel stereo audio. The application could be using for HD CCTV HD-SDI camera and broadcast video monitoring..

Main Features

  • To send 3G/HD/SDI signal convert to HDMI
  • Support SDI (SMPTE 259m), HD-SDI (SMPTE 292m), 3G-SDI (SMPTE 424M)
  • Support video signal NTSC, PAL, 720P, 1080I, 1080P
  • Built in equalizer to increase the working distance and signal reliability
  • SDI loop out with retiming function to have the best output quality
  • Support HDMI 7.1 channel audio
  • SDI Input Connector: BNC 75ohms
  • SDI Output Connector: BNC 75ohms
  • HDMI Output Connector: HDMI Type A
  • Power Consumption:750mA (Max)
  • Power Supply:Switching DC5V 1AMP
  • Power Input 2.1mm DC plug
  • Operating Temperature: 0 to 55° Storage: -20 to 85°
  • Storage Temperature: -20 to 85°
  • Humidity: up to 95%
  • Dimensions : 2.6" x 4.3 x 1" (inches)
  • Weight:7 Ounces
