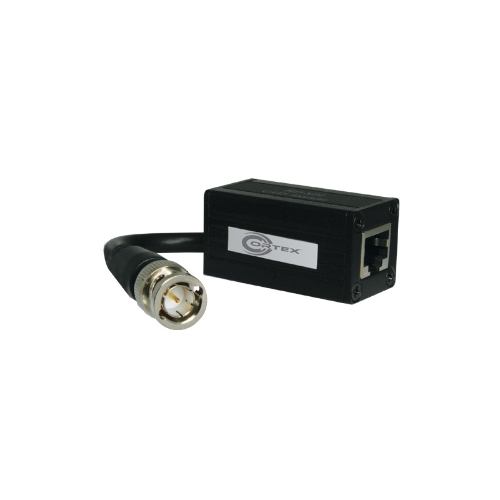

SDI CAT5 Passive Extender from Cortex®
SDI

This HD-SDI CAT5 extender is a passive device which use in one pair to send HD-SDI signals up to 45m via a CAT6 cable at HD resolution in a point-to-point configuration.

This device transmits the HD-SDI signal up to 500ft over 1 pair UTP cable without using a repeater. Comes in a compact size and provides a terminal block for easy installations.

  • Sends HD SDI signal over cat5e/6 UTP cable
  • Support SDI (SMPTE 259m), HD-SDI (SMPTE 292m)
  • No external power required
  • Up to 98ft via cat5 cable at HD-SDI resolution
  • Up to 147ft via cat6 cable at HD-SDI resolution
  • Standard RJ45 connection

See specifications for technical descriptions and features.

Send Me Prices

Video Baluns:
CAT5, Extender, Passive, SDI, Transmitter, UTP

SDI CAT5 Passive Extender from Cortex® specifications for this accessory product COR-HDC45
Specification Sheet

Get Prices

Price: Login
Points to Purchase:1300
Share this product
Item #: COR-HDC45
Availability: In Stock
Usually ships In 1-2 Business Days

HD-SDI CAT5 Extender is a passive device which use in one pair to send HD-SDI signals up to 45m via a CAT6 cable at HD resolution in a point-to-point configuration. The HD-SDI passive CAT5 extender supports un-compressed transmission of up to 1.485G b/s. It is perfect to send HD CCTV over existing CAT5 cable Applications include HD-CCTV,broadcasting, HD camcorder, studio-to-studio, postproduction, live events, medical imaging displays, and medical imaging . etc.

Main Features

  • Sends HD SDI signal over cat5e/6 UTP cable
  • Support SDI (SMPTE 259m), HD-SDI (SMPTE 292m)
  • No external power required
  • Up to 98ft via cat5 cable at HD-SDI resolution
  • Up to 147ft via cat6 cable at HD-SDI resolution
  • Standard RJ45 connection
  • Video BNC x 1 (75ohms) MALE
  • Transmission Interface RJ45 x 1
  • RJ45 pin define Pin 7 SDI (+) Pin 8 SDI (-)
  • Insert loss 6 dB
  • Video Bandwidth 270M b/s 1.485G b/s
  • Weight 58(g) 2(ounces)
  • Dimensions 1" X 1" x 5.5"(inches)
