H.265+ / H.265 / H.264 | 2MP | IP Camera | PoE | Infrared Array

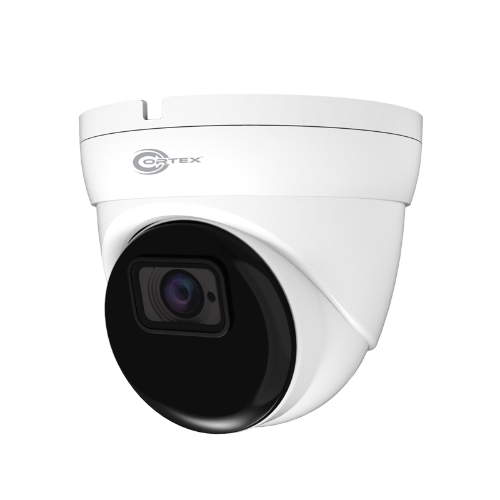

Cortex delivers another great value in the Medallion 2MP 1920(H)×1080(V) network camera range. With a very small footprint, this 2 megapixel mini turret dome delivers a wide-angle image with crystal clear quality from corner to corner. Designed for ultra low light areas were color is needed, this model can be switched to color mode while maintaining a low level of noise and low motion distortion. Cortex 2MP 1920(H)×1080(V) system CMS and app compatible.
The Cortex® IP2TRFEG turret adds 6 levels of intelligent analysis that help users determine specific triggers and alerts on a specialized schedule. This puts allot more power in the programmers hands allowing direct competition with much pricier models. A tinted stealth cover infrared system illuminates areas of complete darkness, while the integrated CMOS can be used with very little illumination and maintain full color saturation when appropriate. When used with Medallion Series NVRs, these 4k UHD network cameras can be adjusted and fine tuned directly from the main monitor area.

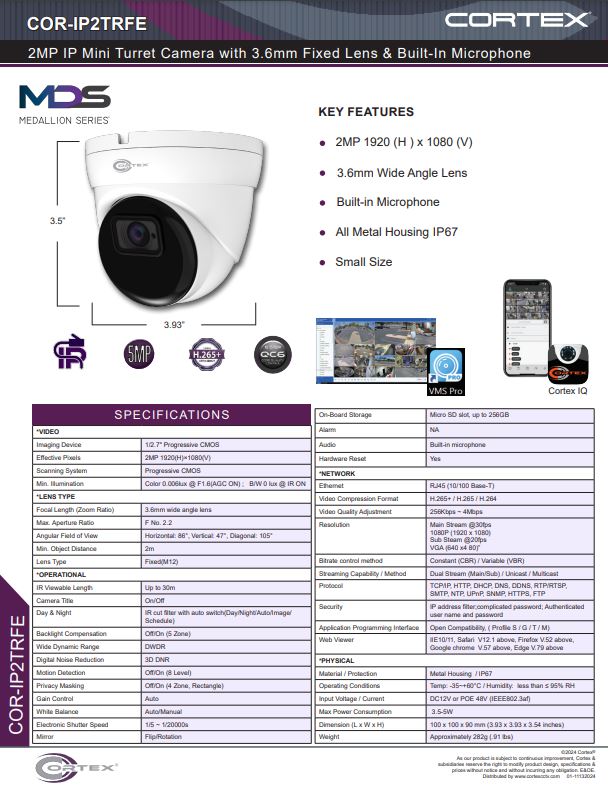

Main Features
- Premium Components
- 2MP 1920(H)×1080(V)Resolution
- 1/2.7” Progressive CMOS
- 3.6 mm wide angle lens
- Up to 98.4 feet (30m) IR Range
- H.265+ / H.265 / H.264 Video Compression
- Auto switching infrared-cut filter (OSD on / off)
- Multiple adjustable Video Streaming
- IEEE 802.3af / IEEE 802.3at | PoE
- IP67 Waterproof Metal Housing Casing
- Video Compression Format:H.265+ / H.265 / H.264
- Effective Pixels: 2MP 1920(H)×1080(V)
- Imaging Device: 1/2.7” Progressive CMOS
- Min. Illumination: Color 0.006ux @ F1.6(AGC ON) ; B/W 0 lux @
IR ON
- LENS TYPE
- Video Quality Adjustment: 256Kbps ~ 4Mbps
- Electronic Shutter Speed: 1/5 ~ 1/20000s
- Focal Length (Zoom Ratio): 3.6 mm wiide angle
- Max. Aperture Ratio: F No. 2.2
- Angular Field of View: Horizontal: 86°, Vertical: 47°, Diagonal: 105°
- Min. Object Distance: 2m
- Lens Type: Fixed Wide Angle (M12)
- OPERATIONAL
- Camera Title: On / Off
- Day & Nigh: IR cut filter with auto switch (Day / Night /Auto /
Image /Schedule)
- Backlight Compensation: Off / On (5 Zone)
- IR Viewable Length: Up to 98.4 feet (30m)
- Wide Dynamic Range: WDR
- Digital Noise Reduction: 3D DNR
- Motion Detection: Off / On (8 Level)
- Image Settings: Full Color Mode / Day&Night Mode / Schedule
- Privacy Masking:Off / On (4 Zone, Rectangle)
- Hardware Reset: Yes
- Gain Control: Auto
- White Balance: Auto / Manual
- On-Board Storage: Micro SD slot, up to 256GB
- Alarm: NA
- Audio: Built-in microphone
- AI Smart Feature: N/A
- NETWORK
- IP / Ethernet: IPv6 / RJ45(10/100BASE-T)
- Resolution:
- Mainstream: @30fps
1080P(1920x1080)
- Substeam:@20fps
VGA(640x480)
- Bitrate control method: CBR/VBR
- Streaming Capability / Method: Triple-Stream (Main/Sub/Mobile) / Unicast / Multicast
- Protocols:
- TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,
SMTP,NTP,UPnP,SNMP,HTTPS,FTP
- Security: Complex password; authenticated username and password
- Streaming Method: Unicast / Multicast
- Application Programming Interface: Open Compatibility, ( Profile S / G / T)
- Web Viewer:IE10/11
- PHYSICAL
- Material / Protection: Metal housing / IP67 Waterproof
- Operating Conditions: Temp: -35~+60°C/ Humidity: less than ≤ 95% RH
- Input Voltage / Current: DC12V / PoE (IEEE802.3af)
- Power Consumption:(IR OFF) 1.5W-2.5W
- Dimension (W x H x D): 100 x 100 x 90 mm (3.9 x 3.9 x 3.5 inches)
- Weight: Approximately 415g (.91 lbs)
