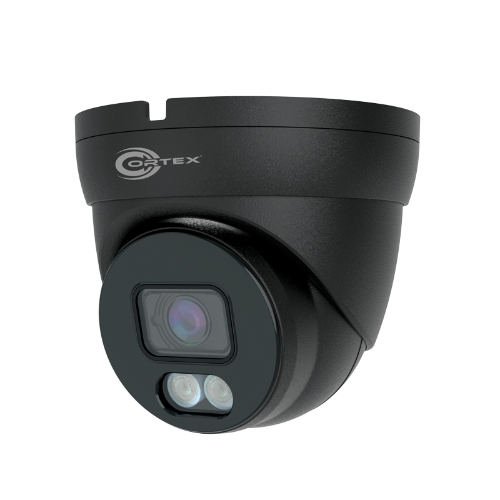

Cortex® delivers another great value in the Medallion 4K network camera range. With a very small footprint, this 8 megapixel mini turret dome delivers a wide-angle image with crystal clear quality from corner to corner. Designed for ultra low light areas were color is needed, this model can be switched to color mode while maintaining a low level of noise and low motion distortion. Cortex 4K system CMS and app compatible.
The Cortex® IP8TRF adds 6 levels of intelligent analysis that help users determine specific triggers and alerts on a specialized schedule. This puts allot more power in the programmers hands allowing direct competition with much pricier models. A tinted stealth cover infrared system illuminates areas of complete darkness, while the integrated CMOS can be used with very little illumination and maintain full color saturation when appropriate. When used with Medallion Series NVRs, these 4k UHD network cameras can be adjusted and fine tuned directly from the main monitor area.
- Premium Components and corrosion resistant finish
- Medallion network camera
- 2160p security camera
- Premium Components and corrosion resistant finish
- Designed for Ultra low light applications while maintaining color mode
- 8MP 3840 (H) × 2160 (V) 4k Resolution 1/2.5" Progressive CMOS (8.51M pixels)
- Audio Yes, Built in Onboard Microphone
- 3.6mm IR wide angle lens
- DragonFire® 1pc LEDs
- 98 feet (30m) IR Range Dragonfire Matrix
- H.265 / H.264 Video Compression
- Auto switching infrared-cut filter (OSD on/off)
- Multiple adjustable Video Streaming
- IEEE 802.3af / IEEE 802.3at | PoE
- IP66 Waterproof Metal Housing Casing
- Can be used indoor or outdoor
- Cortex 4K
- Open compatibility
- Combine with plug and play Medallion Collection Network Recorders
- NDAA Compliant - FCC approved
- 8MP 3840(H)×2160(V)
- Imaging Device: 1 / 2.8”
- Scanning System: Progressive CMOS
- Min. Illumination: Color 0.1lux @ F1.2(AGC ON) ; B/W 0 lux @ IR ON
- Focal Length (Zoom Ratio): 3.6 mm
- Max. Aperture Ratio: F No.1.6±10%
- Lens Type: Fixed (M12)
- Angular Field of View: Horizontal: 87.55°, Vertical: 44.42°, Diagonal:
104.88°
- Min. Object Distance: 2m
- IR Viewable Length: Up to 98 feet (30m)
- Camera Title: On / Off
- Day & Night:
- IR cut filter with auto switch (Day / Night / Auto / Schedule)
- Backlight Compensation : Off / On (5 Zone)
- Wide Dynamic Range: WDR
- Digital Noise Reduction: 3D DNR
- Motion Detection : Off / On (8 Level)
- Privacy Masking: Off / On (4 Zone, Rectangle)
- Gain Control: Auto
- White Balance: Auto / Manual / Indoor
- Electronic Shutter Speed: 1/5 ~ 1/20000s
- Flip: / Mirror: Flip / Rotation
- On-Board Storage:Micro SD slot, up to 256GB
- Audio: Built-in microphone
- Alarm: NA
- Hardware Reset: Yes
- Ethernet: RJ45 (10 / 100BASE-T)
- Video Compression Format: H.265 / H.264
- Smart Feature: PID,LCD,PD/VD, FD
- Resolution:
- Mainstream:8MP(3840x2160),5MP(2592x1944,3072x1728),
4MP(2592x1520),3MP(2304x1296),1080P(192
0x1080), 960P(1280*960),720P(1280x720),
- Substeam:720P(1280x720),VGA(640x480),QVGA(320x240)
- Mobilestream: VGA(640x480), QVGA (320x240)
- Max. Framerate:
- 50Hz:25fps@8MP,5MP,4MP,3MP,2MP,960P,720P
,VGA,QVGA
- 60Hz:30fps@8MP,5MP,4MP,3MP,2MP,960P,720P
,VGA,QVGA
- Video Quality Adjustment: 8Kbps ~ 8Mbps
- Bitrate control method: CBR/VBR
- Streaming Capability :Triple-Stream (Main / Sub / Mobile)
- IP: IPv4
- Image Settings:
- Image rotate, Saturation, Contrast, Hue, Brightness, Sharpness
- Protocols:
- TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,PPPoE,SMTP,NTP,UPnP,SNMP,HTTPS,FTP,
- Security:
- IP address filter;complicated,password;Authenticated username and password
- Streaming Method: Unicast / Multicast
- Max. User Access: Max 7 (admin+user)
- Application Programming Interface: Open compatibility ( Profile S/G/T, 18.12)
- Web Viewer :
- IE8,9,10,11, Chrome 44/lower, Firefox 51 /lower, Safari 11/ lower
- Illumination: DragonFire® 1pc LEDs
- PoE: Yes, IEEE 802.3af / IEEE 802.3at
- Ingress Protection: Metal Housing IP66 Waterproof
- Color / Material: Gray / Metal
- Input Voltage / Current: D12V /POE(IEEE802.3af)
- Power Consumption: 3.6W
- Storage Conditions: -30~+60°C (-22~+140°F) less than ≤ 95% RH
- Operating Conditions: -30~+55°C (-22~+131°F) ) less than ≤ 95% RH
- Dimension:129 x 129 x 99 mm (5 x 5 x 3.8 inches)
- Weight:Approximately 420g (1.1 lbs)
Specification Sheet
