H.265 / H264 | 5MP | Network IP | PoE | Built in Microphone

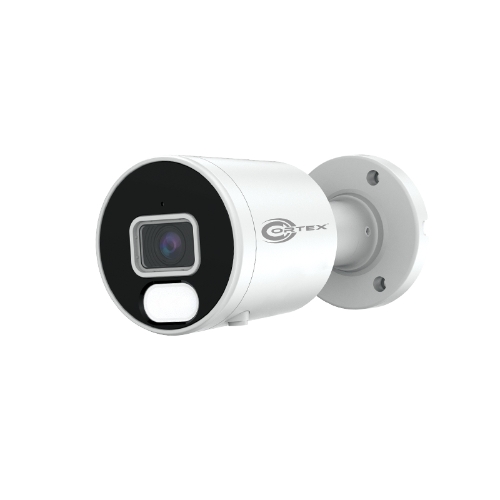

This Cortex® Medallion 5MP bullet network camera is design for fast network installs and unparalleled performance. Save tons of precious time with the Medallion Network utility tools from Cortex® and PoE network technology.
This model is perfect for wide angle viewing and can be used in areas with low illumination.
Main Features
- Premium Components / Technology
- 5MP 2592(H) × 1944(V) Resolution
- Medallion Series Network Camera
- Cortex Camera Advanced GUI1/
- Intelligent Analitycs
- 1/2.7” Progressive CMOS
- 3.6 mm IR Lens approx. 77° H.FOV
- DragonFire® 2pcs (Cortex Matrix Array) LEDs
- H.265 / H.264 Video Compression
- IR Range up to 82 feet
- Audio on board Yes
- IEEE 802.3af / IEEE 802.3at | PoE
- IP66 Waterproof Metal Housing Casing
- Effective Pixels:5MP 2592(H)×1944(V)
- Imaging Device: 1 / 2.7”
- Scanning System: Progressive CMOS
- Min. Illumination: Color 0.1lux @ F1.2(AGC ON) ; B/W 0 lux @ IR ON
- Focal Length: 3.6 mm
- Max. Aperture Ratio: F No. 1.6±5%
- Lens Type: Fixed (M12)
- Angular Field of View: Horizontal:81°, Vertical:57°, Diagonal:108°
- Min. Object Distance: 2m)
- IR Viewable Length: Up to 98 feet (30m)
- Camera Title: On / Off
- Day & Night:
- IR cut filter with auto switch (Day / Night / Auto / Schedule)
- Backlight Compensation : Off / On (5 Zone)
- Wide Dynamic Range: DWDR
- Digital Noise Reduction: 3D DNR
- Motion Detection : Off / On (8 Level)
- Privacy Masking: Off / On (4 Zone, Rectangle)
- Gain Control: Auto
- White Balance: Auto / Manual / Indoor
- Electronic Shutter Speed: 1/5 ~ 1/20000s
- Flip: / Mirror Flip / Rotation
- On-Board Storage:
- Audio: NA
- Alarm: NA
- Hardware Reset: Yes
- Ethernet: RJ45 (10 / 100BASE-T)
- Video Compression Format: H.265 / H.264
- Resolution:
- Mainstream5MP(2592×1944),4MP(2592x1520)3MP(2304x1296),1080P(1920x1080)960P(1280x960),720P(1280x720)
- Substeam:720P(1280x720),VGA(640x480),QVGA(320x240)
- Mobilestream: VGA(640x480), QVGA (320x240)
- Max. Framerate: 20fps
- Video Quality Ajustment: 8Kbps ~ 8Mbps
- Bitrate control method: CBR/VBR
- Streaming Capability :Triple-Stream (Main / Sub / Mobile)
- IP: IPv4
- Image Settings:
- Image rotate, Saturation, Contrast, Hue, Brightness, Sharpness
- Protocols:
- TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,PPPoE,SMTP,NTP,UPnP,SNMP,HTTPS,FTP,
- Security:
- IP address filter;complicated,password;Authenticated username and password
- Streaming Method: Unicast / Multicast
- Max. User Access: Max 7 (admin+user)
- Application Programming Interface: Open compatibility ( Profile S/G/T)
- Web Viewer :
- IE8,9,10,11, Chrome 44/lower, Firefox 51 /lower, Safari 11/ lower
- Illumination: DragonFire® 1pc LEDs
- PoE: Yes, IEEE 802.3af / IEEE 802.3at
- Ingress Protection: Metal Housing IP66 Waterproof
- Color / Material: White / Metal
- Input Voltage / Current: D12V /POE(IEEE802.3af)
- Power Consumption: 3.6W
- Storage Temperature: -30~+60°C (-22~+140°F) less than ≤ 95% RH
- Operating Temperature: -30~+55°C (-22~+131°F) ) less than ≤ 95% RH
- Dimension: 160 x 85 x 85 mm ( 6.2 x3.5 x 3.5 inches)
- Weight:Approximately 474g (1.04 lbs)
Specification Sheet
