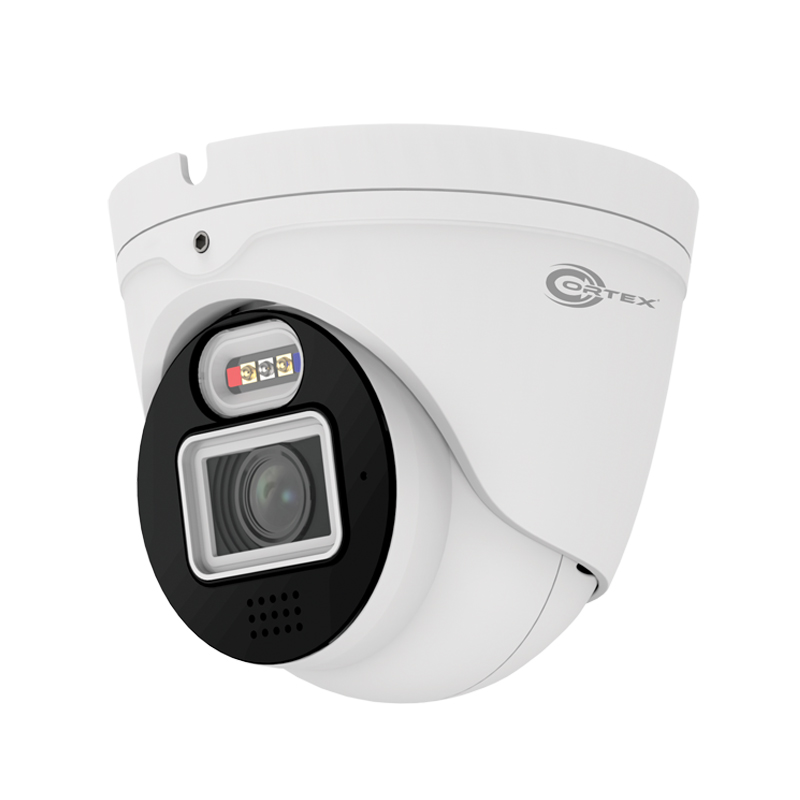

4MP ColorMax Ultra Network IP Camera | Extended range PoE
This 4MP ColorMax Ultra turret network camera from Cortex Medallion is the ideal solution for low-light observing at night. Tailored to deliver accelerated network installations and exceptional performance in residential and commercial settings. Designed to operate effectively in low-light environments, these Ultra IP cameras have the capability to magnify ambient light and deliver supplementary on-board illumination to produce images with vivid colors and high saturation.
This variant is ideal for widescreen viewing and is suitable for locations requiring a broad horizontal angle. The ColorMax Ultra CMOS sensor integrates cutting-edge technology to deliver stunning, full-color nighttime images. Whether you are remotely or in-person monitoring, this Medallion camera will deliver the full ColorMax capabilities to your screen while delivering the finest overall performance.
The 128 channel-capable Cortex® VMS and CMS software modules enable the achievement of tailored design objectives at competitive prices. Leverage the capabilities of Cortex Medallion NVRs by utilizing the native settings and feature support.
- ColorMax Ultra Technology
- Cortex Security Plug-n-play Compatible
- 4MP 2688 (H) × 1520(V) Resolution
- Medallion Series Network Camera
- Intelligent Analytics with Full AI
- 1/1.8” Progressive CMOS
- F1.0 Wide Angle Len for super low light viewing
- H.265+ / H.265 / H.264 Video Compression
- Visible Warm Light Viewable length 80 feet (25m)
- Multiple adjustable Video Streaming
- IEEE 802.3af / IEEE 802.3at | Extended PoE
- IP66 Waterproof Metal Housing Casing
- Remote view: Cortex® VMS, Cortex IQ app
- NDAA Compliant - FCC approved
- VIDEO*
- Imaging Device : 1/1.8” Progressive ColorMax CMOS Ultra
- Total Pixels 4MP 2688 (H) × 1520(V)
- Scanning System Progressive CMOS
- Minimum Illumination Color 0.0005 Lux @(F1.0,AGC ON) ;
B/W 0 lux @ IR ON
- LENS*
- Focal Length (Zoom Ratio): Wide Angle Lens
- Max. Aperture Ratio: F1.0
- Angular Field of View: Horizontal:105°, Vertical: 51°, Diagonal:115°
- Min. Object Distance: 0.7m
- Lens Type: M16
- OPERATIONAL
- IR LED : N/A
- Warm Light Illumination: 2 Dragonfire White Light
- Flashing Warning Light: 2 (1 white &1 amber)
- Warm Light Viewable length: Up to 80 feet (25m)
- IR Viewable length :N/A
- Type of complementary light: Default warm light
- Backlight Compensation : Off / On (5 Zone)
- Wide Dynamic Range: ‘WDR
- Digital Noise Reduction :3D DNR
- Motion Detection : Off / On (8 Level)
- Day & Night :Ext / Color / B/W
- Image Setting :Full Color Mode
- Privacy Masking: Off / On (4 Zone, Rectangle)
- Gain Control: Auto
- White Balance :Auto / Manual
- Electronic Shutter: Speed 1/5 ~ 1/20000s
- On-Board Storage : Micro SD slot, up to 256GB
- Alarm :N/A
- Audio: Built-in microphone & Speaker
- Hardware Reset: Yes
- AI Smart Feature:
- License Plate Detection (LPD) with OCR
- Face Recognition(FR)
- Human & Vehicle Detection (PD&VD)
- Perimeter Intrusion Detection(PID)
- Line Crossing Detection(LCD) Cross Counting (CC)
- Stationary Object Detection (SOD)
- Heat Map(HM)Crowd Density Detection (CD)
- Queue Length Detection (QD)
- Rare Sound Detection (RSD)
- NETWORK*
- IP / Ethernet: IPv6 / RJ45(10/100BASE-T)
- Resolution:
- Main Stream :
4MP(2688x1520),3MP(2304x1296),
1080P(1920x1080)
- Substeam: Sub Steam :
1080P(1920x1080),720P(1280x720),VGA(640x480)
- Mobile Stream :
VGA(640x480), QVGA(320x240)
- Video Compression: Format H.265+ / H.265 / H.264
- Video Quality Adjustment: 256Kbps ~ 8Mbps
- Bitrate control method: CBR/VBR
- Streaming Capability / Method: Triple-Stream (Main/Sub/Mobile) / Unicast / Multicast
- Protocols:
- TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,PPPoE,
SMTP,NTP,UPnP,SNMP,HTTPS,FTP,
- Security: Complex password; authenticated username and password
- Streaming Method: Unicast / Multicast
- Max. User Access: Max 7 (admin+user)
- Application Programming Interface: Open Compatibility, ( Profile S / G / T)
- Web Viewer: IE10/11. Safari V12.1 above ,Firefox V.52 above
Google chrome V.57 above ,Edge V.79 above
- ENVIRONMENTAL*
- Material / Protection: Metal housing / IP67 Waterproof
- Operating Conditions: Temp: -35~+55°C (-22~+140°F) / Humidity: less than ≤ 95% RH
- Storage Conditions: Temp: -35~+55°C (-22~+140°F) / Humidity: less than ≤ 95% RH
- ELECTRICAL**
- Input Voltage / Current D12V/POE(IEEE802.3af)
- MECHANICAL*
- Dimension (W x H x D) 88 x 88 x 228 mm (3.5 x 3.5 x 9 inches)
- Weight: Approximately 415g (.91 lbs.)
