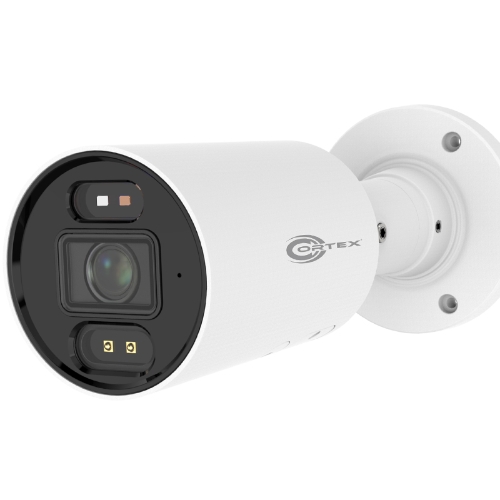

Cortex Advanced AI camera with ColorMax Low light | Extended range PoE
When it comes to observing in low light conditions at night, this Cortex Medallion 4MP ColorMax Ultra bullet network camera is the best in class option. Designed to facilitate rapid network installations and provide unrivaled performance in many settings, including home and business settings. The ColorMax Ultra IP cameras have the ability to magnify the lights that are already present and give extra on-board intensification, which results in images that are vivid and have a high color saturation with fine-edge detail. They are ideal for monitoring high risk regions with low levels of illumination. In addition, the low light performance improves the accuracy and performance of the powerful artificial intelligence engine that is installed on board. This engine is able to identify vehicles and people, and it can even add license plate recognition (LPR) identification and cataloging to the surveillance system.
Not only is this model ideal for seeing from a broad angle, but it also adds long distance viewing in situations previously lost. With the use of the ColorMax Ultra CMOS sensor, which makes use of the most recent technology, the camera is able to reproduce stunning full-color videos with high shutter speeds and reduced smearing. This Medallion camera will give the best overall performance and it will convey the full power of ColorMax to your screen, regardless of whether you are monitoring live or remotely.
The software bundles, which include the Cortex® VMS and CortexIQ apps, are ready for multichannel viewing, which enables them to deliver individualized system design goals at rates that are affordable and high performing. Make use of the Cortex related AI settings and feature support that come with Cortex Medallion NVRs, and take advantage of all the additional capabilities that are available.

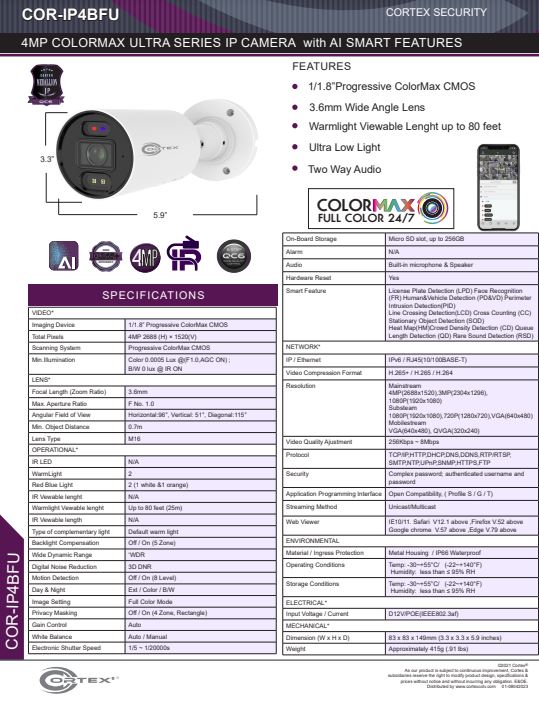

Main Features
- Cortex Security ColorMax Technology
- 4MP 2688 (H) × 1520(V) Resolution
- Medallion Series Network Camera
- Intelligent Analytics AI
- 1/1.8”Progressive CMOS
- F1.0 Ultra low light Wide Angle Lens
- H.265+ / H.265 / H.264 Video Compression
- Warm Light Viewable length 80 feet (25m)
- Independent deterrent lighting and speaker
- Multiple adjustable Video Streaming
- IEEE 802.3af / IEEE 802.3at | PoE
- IP66 Waterproof Metal Housing Casing
- Remote view: Cortex® VMS, Cortex IQ app
- NDAA Compliant - FCC approved
- VIDEO*
- Imaging Device : 1/1.8” Progressive CMOS
- Total Pixels 4MP 2688 (H) × 1520(V)
- Scanning System Progressive CMOS
- Min. Illumination Color 0.0005 Lux @(F1.0,AGC ON) ;
B/W 0 lux @ IR ON
- LENS*
- Focal Length (Zoom Ratio): Wide angle on large sensor
- Max. Aperture Ratio: F1.0
- Angular Field of View: Horizontal:96°, Vertical: 51°, Diagonal:115°
- Min. Object Distance: 0.7m
- Lens Type: Ultra Low light Fixed
- OPERATIONAL
- IR LED : N/A
- Warm Light: 2
- Red Blue Light : 2 (1 white &1 orange)
- Viewable length: Depending on environment
- Warm Light Illumination: 2 Dragonfire White Light
- Warning Light: 2 (1 white &1 orange)
- Warm light Viewable length: Up to 80 feet (25m)
- Type of complementary light: Default warm light
- Backlight Compensation : Off / On (5 Zone)
- Wide Dynamic Range: Native True WDR
- Digital Noise Reduction :3D DNR
- Motion Detection : Off / On (8 Level)
- Day & Night :Ext / Color / B/W
- Image Setting :Full Color Mode
- Privacy Masking: Off / On (4 Zone, Rectangle)
- Gain Control: Auto
- White Balance :Auto / Manual
- Electronic Shutter: Speed 1/5 ~ 1/20000s
- On-Board Storage : Micro SD slot, up to 256GB
- Alarm :N/A
- Audio: Built-in microphone & Speaker
- Hardware Reset: Yes
- AI Smart Feature:
- License Plate Detection (LPD)
- LPR camera function (License Plate Recognition) with OCR
- Face Recognition(FR)
- Human & Vehicle Detection (PD&VD)
- Perimeter Intrusion Detection(PID)
- Line Crossing Detection(LCD) Cross Counting (CC)
- Stationary Object Detection (SOD)
- Heat Map(HM)Crowd Density Detection (CD)
- Queue Length Detection (QD)
- Rare Sound Detection (RSD)
- NETWORK*
- IP / Ethernet: IPv6 / RJ45(10/100BASE-T)
- Resolution:
- Main Stream :
4MP(2688x1520),3MP(2304x1296),
1080P(1920x1080)
- Substeam: Sub Steam :
1080P(1920x1080),720P(1280x720),VGA(640x480)
- Mobile Stream :
VGA(640x480), QVGA(320x240)
- Video Compression: Format H.265+ / H.265 / H.264
- Video Quality Adjustment: 256Kbps ~ 8Mbps
- Bitrate control method: CBR/VBR
- Streaming Capability / Method: Triple-Stream (Main/Sub/Mobile) / Unicast / Multicast
- Protocols:
- TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,PPPoE,
SMTP,NTP,UPnP,SNMP,HTTPS,FTP,
- Security: Complex password; authenticated username and password
- Streaming Method: Unicast / Multicast
- Max. User Access: Max 7 (admin+user)
- Application Programming Interface: Open Compatibility, ( Profile S / G / T)
- Web Viewer: IE10/11. Safari V12.1 above ,Firefox V.52 above
Google chrome V.57 above ,Edge V.79 above
- ENVIRONMENTAL*
- Material / Protection: Metal housing / IP67 Waterproof
- Operating Conditions: Temp: -35~+55°C (-22~+140°F) / Humidity: less than ≤ 95% RH
- Storage Conditions: Temp: -35~+55°C (-22~+140°F) / Humidity: less than ≤ 95% RH
- ELECTRICAL**
- Input Voltage / Current D12V/POE(IEEE802.3af)
- MECHANICAL*
- Dimension (W x H x D) 88 x 88 x 228 mm (3.5 x 3.5 x 9 inches)
- Weight: Approximately 415g (.91 lbs)
