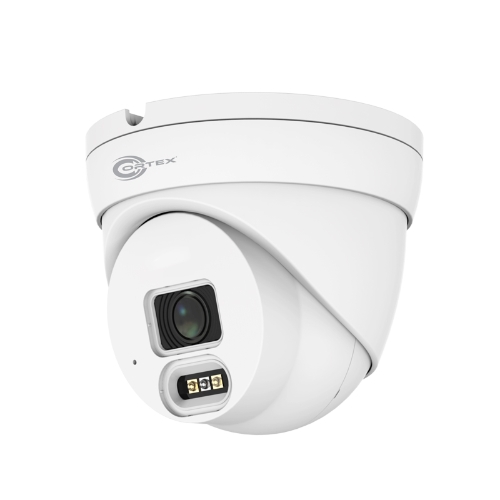

IP4T IP Camera Series from Cortex | Essential Series Low Light Camera | Metal Housing | Audio Mic | PoE
Designed for quick network installations and unrivaled performance, this Cortex Medallion 4MP turret network camera is a great choice for dimly lit areas. By utilizing the Medallion Network utility tools that are powered by Cortex network technology and Cortex software, you may save a significant amount of valuable time and provide top performance.
It is possible to utilize this series in regions with poor illumination, and it is ideal for wide angle viewing. The ColorMax CMOS sensor that is included, which makes use of the most recent technology, is capable of producing stunning nighttime video in full color. This Medallion camera will give the greatest overall performance and convey the entire power of 4 megapixels to your screen, regardless of whether you are watching live or monitoring remotely.
The Cortex® VMS and CMS software packages are ready for multi-channels, which enables them to deliver design goals that are tailored to the customer's specific needs at rates that are affordable. When used in conjunction with Cortex Medallion NVRs and combined cloud redundancy, you take full advantage of all the additional control features.
Main Features
- Premium Components for low light color
- Dual Lighting onboard
- Cortex Security IP4T series
- 4MP (2560 (H) x 1440 (V)Resolution
- Medallion Series Network Camera software ready
- 1/3” Progressive ColorMax CMOS
- 2.8mm Wide Angle Lens
- H.265+ / H.265 / H.264 Video Compression
- Long Range extended PoE
- Built in Microphone
- Triple Streaming
- IP66 Waterproof Metal Housing Casing

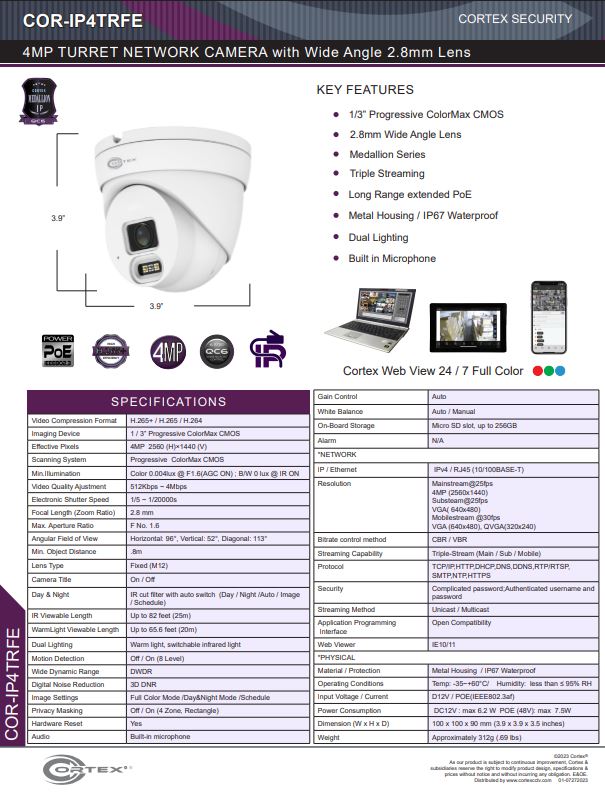

- SPECS, SYSTEM AND LENS
- Video Compression Format:H.265+ / H.265 / H.264
- Imaging Device: 1/3” Progressive ColorMax CMOS
- Effective Pixels: 4MP 2560 (H)×1440 (V)
- Scanning System: Progressive ColorMax CMOS
- IP4T, IP4TFE Turret, Fixed Lens, Essential
- Min. Illumination: Color 0.004lux @ F1.6(AGC ON) ; B/W 0 lux @ IR ON
- Video Quality Adjustment: 512Kbps ~ 4Mbps
- Electronic Shutter Speed: 1/5 ~ 1/20000s
- Focal Length: (Zoom Ratio) 2.8 mm
- Max. Aperture Ratio: F No. 1.6
- Angular Field of View: Horizontal: 96°, Vertical: 52°, Diagonal: 113°
- Min. Object Distance: .8m
- Lens Type Fixed: (M12)
- Camera Title On / Off
- Day & Night: IR cut filter with auto switch (Day / Night /Auto / Image
/ Schedule)
- IR Viewable Length: Up to 82 feet (25m)
- Warm Light Viewable Length: Up to 65.6 feet (20m)
- Type of complementary light: Default warm light, switchable infrared light
- *OPERATION
- Motion Detection: Off / On (8 Level)
- Wide Dynamic Range: DWDR
- Digital Noise Reduction: 3D DNR
- Image Settings Full Color Mode /Day & Night Mode /Schedule
- Privacy Masking: Off / On (4 Zone, Rectangle)
- Audio Built-in microphone
- Hardware Reset: Yes
- Audio Built-in microphone
- Gain Control: Auto
- White Balance: Auto / Manual
- On-Board Storage: Micro SD slot, up to 256GB
- Alarm N/A
- NETWORK
- Protocols:
- TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,
SMTP,NTP,HTTPS
- Application Programming Interface: (Profile S, Profile G, Profile T),
Http API, Cortex Medallion
- Security: Complicated password; Authenticated username and
password
- Web Viewer: IE10/11
- Streaming Method Unicast / Multicast
- Streaming Capability: Triple-Stream (Main / Sub / Mobile)
- Resolution:
- Mainstream: @25fps 4MP (2560x1440)
- Substream: @25fps VGA( 640x480)
- Mobile stream: @30fpsVGA (640x480), QVGA(320x240)
- Bitrate control method: CBR / VBR
- PHYSICAL
- Material / Protection: Metal housing / IP67 Waterproof
- Operating Conditions Temp: -35~+60°C/
- Working Humidity: less than ≤ 95% RH
- Input Voltage / Current: D12V / POE(IEEE802.3af)
- Power Consumption: DC12V max 6.2 W POE (48V): max 7.5W
- Dimension: (W x H x D) 100 x 100 x 90 mm (3.9 x 3.9 x 3.5 inches)
- Weight: Approx. 312g (.69 lbs.)
