HD over coax SDI Fullsize Camera with WDR and Digital Defog

Serial Digital Interface (SDI) is a standard for digital video transmission that allows signals from a digital video source and/or digital audio source to transmit over standard, cheap, and widely available coaxial cables. This allows an easy and economical upgrade path for users who already have a traditional CCTV network in their home or business.

The upgrade in video quality is astonishing when compared to standard analog (traditional) CCTV security cameras. Residential owners will appreciate ease of use, since there is no need to understand and assign IP addresses, security protocols and other factors that are inescapable when upgrading to IP cameras. All owners appreciate the fact they don?t have to have their property torn up or business operations interrupted to install new cable runs.

Camera:
Full Size, Indoor, Infrared, SDI

Get Prices

Price: Login
Points to Purchase:0
Share this product
Item #: ECL-553SHD
Availability: Discontinued notify me

SDI Fullsize Camera with WDR, HD over coax and Digital Defog

Serial Digital Interface (SDI) is a standard for digital video transmission that allows signals from a digital video source and/or digital audio source to transmit over standard, cheap, and widely available coaxial cables. This allows an easy and economical upgrade path for users who already have a traditional CCTV network in their home or business.

The upgrade in video quality is astonishing when compared to standard analog (traditional) CCTV security cameras. Residential owners will appreciate ease of use, since there is no need to understand and assign IP addresses, security protocols and other factors that are inescapable when upgrading to IP cameras. All owners appreciate the fact they don?t have to have their property torn up or business operations interrupted to install new cable runs.

Super High Resolution Video Sensor

Image pickup starts with the lens. A lens is not included, giving you the option of tailoring this integral part yourself in a way that best suits your surveillance environment.

Main Features

  • 1/3" color high resolution CMOS video sensor
  • 1080P Digital signal processing
  • 1000 - TV lines (min.) resolution
  • 0.1 LUX minimum illumination, f1.2
  • Power: 12VDC
  • Operating temperature: -10°C - 50°C (14°F - 122°F)

  • 1/3" color high resolution CMOS video sensor
  • 1080P Digital signal processing
  • 1000 -TV lines (min.) resolution
  • 0.1 LUX minimum illumination, f1.2
  • Auto-electronic shutter
  • Auto-iris controls
  • Auto white balance, auto gain control
  • Back light compensation (selectable)
  • Built-in anti-aliasing and IR-cut filter
  • Sensitive to infrared light (requires a radiant IR source - not included)

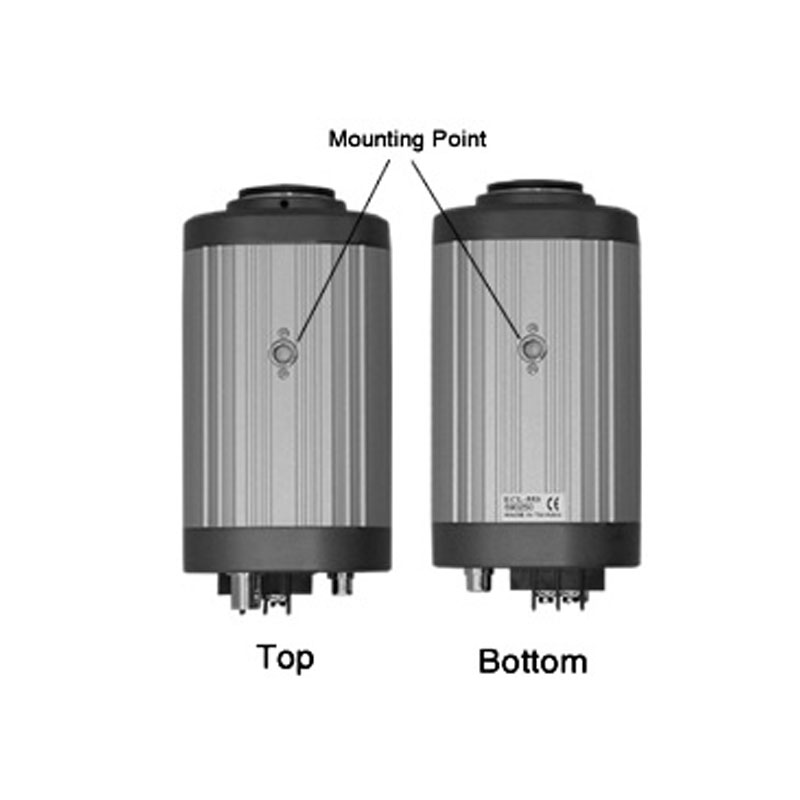

  • C or CS- mount lens compatible (C-ring provided)
  • Power: 12VDC
  • Operating temperature: -10°C - 50°C (14°F - 122°F)
  • Weight: 400g (14.1oz)
