1080P Cortex® HDZ20 20x Zoom High Definition SDI Full Size Security Camera
  • 1080P Cortex® HDZ20 20x Zoom High Definition SDI Full Size Security Camera
  • CCTV Steel Camera Housing w/ Easy Open Latch
  • Tilt and Swivel Outdoor Camera Bracket  - COR-205
SDI

SDI 1080P | HD | Full size

This full size professional box-style camera has an industry standard lens mount,the 20x Zoom with Auto Focus has six time the resolution of analog cameras.Programmable and selectable through controls on back of The COR-HDZ20 camera. Options include address code, gain control electronic shutter, backlight compensation, digital zoom, focus control, privacy masking and more.

Create up to 4 on-screen trigger zones with adjustable sensitivity. Trigger an alarm when motion is detected in one of the zones, using the GND/In/Out terminals on the back of the camera.

See specifications for technical descriptions and features.

Send Me Prices

Camera:
1080p, Full Size, SDI, Zoom Lens

Get Prices

Price: Login
Points to Purchase:7150
Share this product
Item #: COR-HDZ20
Availability: Back Order

Cortex® 20x Zoom High Definition SDI Full Size Security Camera

This full size professional box-style camera has an industry standard lens mount,the 20x Zoom with Auto Focus has six time the resolution of analog cameras.

OSD Menu controls are a must

The Joystick controlled RS-485 Interface is just the beginning of the list of features of The COR-HDZ20 security camera. Auto-gain control (AGC), backlight compensation (BLC), and non-digital wide dynamic range (WDR) can be configured at the camera using its built-in on-screen display (OSD). You can also configure white balance in a number of different modes to help insure accurate color reproduction. Other settings allow it to pickup up images in light levels as low as 0.01 LUX, enhance image sharpness and color, reduce video noise and set up privacy masks.

Programmable

Selectable through controls on back of The COR-HDZ20 camera. Options include address code, gain control electronic shutter, backlight compensation, digital zoom, focus control, privacy masking and more.

Motion Detection

Create up to 4 on-screen trigger zones with adjustable sensitivity. Trigger an alarm when motion is detected in one of the zones, using the GND/In/Out terminals on the back of the camera.

Main Features

  • 1/3" Panasonic CMOS
  • x20, Day Night Zoom Lens
  • Optical x20 , Digital x32
  • F1.6 (wide) ~ F3.5 (tele)
  • Focus distance 0.1 / 1.0 / 2.0 / 3.7 / 11.0 m
  • Motion Detection
  • Smart IR / Defect compensation
  • OSD menu
  • Full HD 1080p resolution
  • Color : 0.5Lux, BW : 0.1Lux Color DSS : 0.002 lux , BW DSS : 0.001 lux
  • Privacy masking Off / 32 positions
  • Shading / Defog (OSD)
  • White Balance (OSD)
  • DNR (OSD)
  • BLC - back-light compensation (OSD)
  • HLC - highlight masking (OSD)
  • DC 12V : 10%

  • 1/3" Panasonic CMOS
  • x20, Day Night Zoom Lens
  • Optical x20 , Digital x32
  • F1.6 (wide) ~ F3.5 (tele)
  • Focus distance 0.1 / 1.0 / 2.0 / 3.7 / 11.0 m
  • Motion Detection
  • Smart IR /Defect compensation
  • OSD menu
  • Full HD 1080p resolution
  • Color : 0.5Lux, BW : 0.1Lux Color DSS : 0.002 lux , BW DSS : 0.001 lux
  • Privacy masking Off / 32 positions
  • Shading / Defog (OSD)
  • White Balance (OSD)
  • DNR (OSD)
  • BLC - back-light compensation (OSD)
  • HLC - highlight masking (OSD)
  • DC 12V : 10%

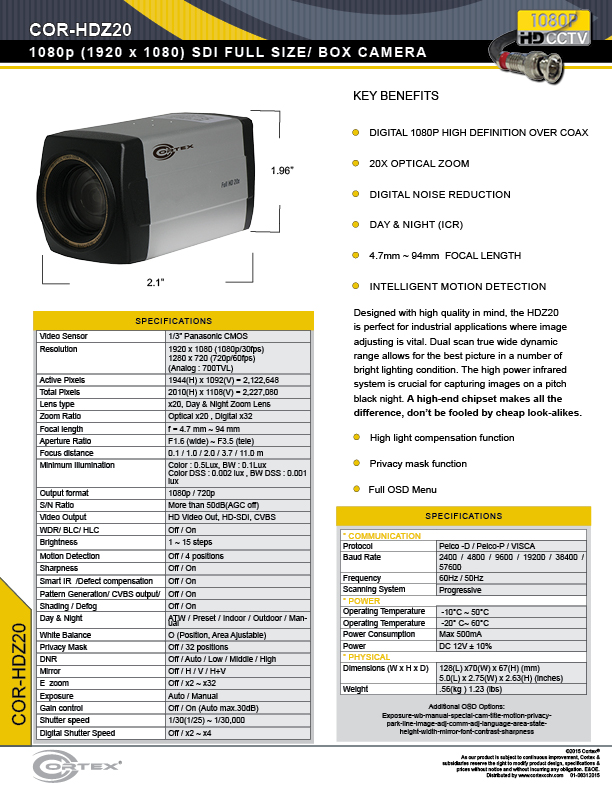

  • Specification Sheet

Add these product accessories for this product

Item # Description/Size Availability Qty Break Price Quantity
COR-605
COR-605 provides a basic clamshell, weatherproof security camera housing with a latch and designed for box-style (full size) surveillance cameras.
In Stock 1 Login
COR-205
"COR-205 tilt and swivel camera bracket made of aluminum for outside use with a 360 degree rotation
In Stock 1 Login
