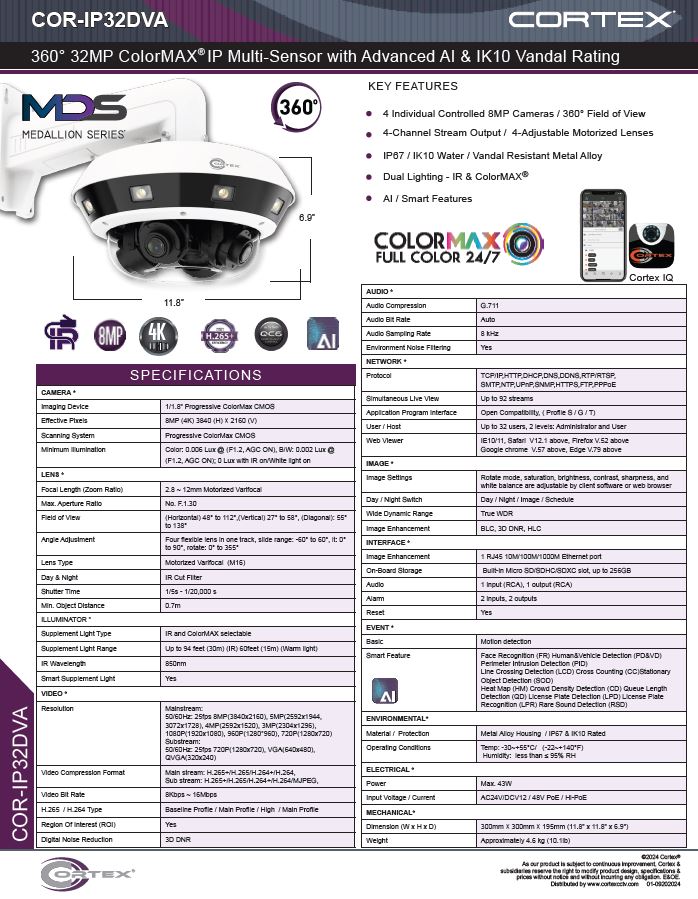

Cortex Multisensor Extreme Low Light IP Camera | Adjustable camera pods and Varifocal Lenses

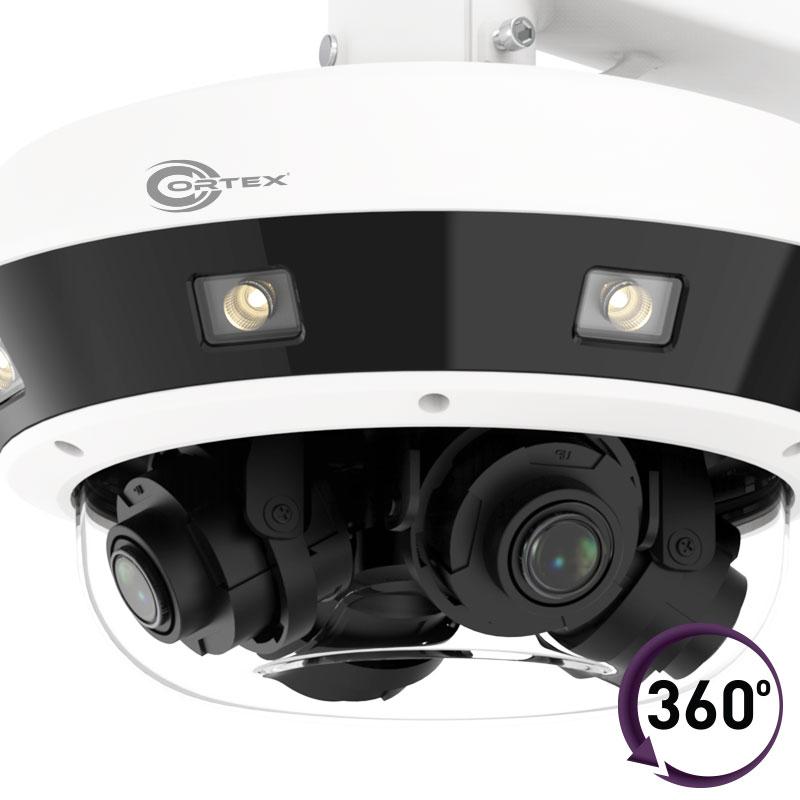

The ColorMax, Ultra low light 32MP Network camera from Cortex Security offers an enhanced degree of night time viewing. Intended for use in various lighting conditions and situations when illumination is limited. The deployment process is expedited due to the availability of several mounting choices, allowing for optimal utilization of the 4 x 8MP Outdoor Network Camera and 2.8 ~ 12mm (Motorized) lenses.
The incorporation of a sizable 1/1.8" CMOS technology enables the capture of exceptional nighttime videos in vibrant color. Additionally, the inherent wide dynamic range (WDR) effectively equalizes the illumination levels in both overexposed and underexposed regions. The presence of four distinct gimbal pods that may slide, tilt, and adjust separately provides a high degree of flexibility when choosing scenes. The Medallion Multisensor Security Camera is equipped with a set of infrared LEDs (Array) and an additional white light array that can be selected for long range illumination.
Main Features
- 1/1.8" Progressive ColorMax CMOS
- Large image sensors for extreme low light color viewing
- Premium Low light, low F-stop lenses for low light Color rendering
- 32 Megapixels with edge AI
- Ceiling mount, Wall mount or corner mount options
- 270 degrees or 360 degrees coverage (adjustable)
- 4 x 8MP (32MP total) 3840 (H) × 2160 (V) Resolution
- 2.8~12mm (Motorized) Varifocal ColorMax Lens
- H.265+ / H.265 / H.264 Video Compression
- Individual Mainstream and Substream adjustments
- True 120dB WDR
- Intelligent AI detection and notification for each channel
- Built-in dual source illuminators for black and white or night time color (IR & warm light)
- IP67 Waterproof and Vandalproof Metal Housing
- Camera
- Image Sensor :1/1.8ʺ Progressive Scan CMOS (EA)
- Max. Resolution : 8MP (4K) 3840 (H) × 2160 (V) each
- Min. Illumination :Color: 0.006 Lux @ (F1.2, AGC ON), B/W: 0.002 Lux @ (F1.2, AGC ON);
0 Lux with IR on/White light on
- Shutter Time: 1/5s - 1/20,000 s
- Day & Night : IR Cut Filter for Black and white / Full Color / Low light Color
- Angle Adjustment : Four IP cameras with varifocal lens on a sliding track
- Slide range: -60° to 60°,
lt: 0° to 90°, rotate: 0° to 355°
- Lens: 2.8 ~12 mm Varifocal motorized low light lens
- Field of View: (Horizontal) 48° to 112°,(Vertical) 27° to 58°,
(Diagonal): 55° to 138°
- Max. Aperture Ratio. F1.30
- Illuminators
- Supplement Light Type: IR and Warm White light
- Supplement Light Range: Up to (98 feet) (IR) / (75 feet) (Warm light)
- IR Wavelength: 850nm
- Supplement Light type: LED
- Video
- Resolution:
- Main Stream: 50/60Hz: 25fps 8MP(3840x2160),5MP(2592x1944,3072x1728),
4MP(2592x1520),3MP(2304x1296),1080P(1920x1080),
960P(1280*960),720P(1280x720)
- Sub stream: 50/60 Hz: 25fps 720P(1280x720),VGA(640x480),QVGA(320x240)
- Video Compression:
- Main stream: H.265+/H.265/H.264+/H.264,
- Sub stream: H.265+/H.265/H.264+/H.264/MJPEG,
- Video Bit Rate:8Kbps to 16 Mbps
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main Profile
- Region Of Interest (ROI):Yes
Audio
- Audio Compression: G.711
- Audio Bit Rate: Auto
- Audio Sampling Rate: 8 kHz
- Environment Noise Filtering: Yes
Network
- Protocols :TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,
SMTP,NTP,UPnP,SNMP,HTTPS,FTP,PPPoE
- Simultaneous Live View: Up to 92 streams
- Application Programming Interface API: Open Compatibility, ( Profile S / G / T)
- User/Host: Up to 32 users, 2 levels: Administrator and User
- Web Browser IE10/11
Safari V12.1 above
Firefox V.52 above
Google chrome V.57 above
Edge V.79 above
- Image Settings: Rotate mode, saturaon, brightness, contrast, sharpness, and
white balance are adjustable by client soware or web browser
- Day/Night Switch: Day/Night/Image/Schedule
- Wide Dynamic Range: (WDR) 120 dB
- Image Enhancement: BLC, 3D DNR
Interface
- Image Enhancement 1 RJ45 10M/100M/1000M Ethernet port
- On-Board Storage: Built-in Micro SD/SDHC/SDXC slot, up to 256GB
- Audio: 1 input (RCA), 1 output (RCA)
- Alarm: 2 inputs, 2 outputs
- Reset : Yes
Event
- Basic : Motion detection
- AI Smart Feature:
- License Plate Detection (LPD)
- Face Recognition(FR)
- Human & Vehicle Detection (PD&VD)
- Perimeter Intrusion Detection(PID)
- Line Crossing Detection(LCD) Cross Counting (CC)
- Stationary Object Detection (SOD)
- Heat Map(HM)Crowd Density Detection (CD)
- Queue Length Detection (QD)
- Rare Sound Detection (RSD)
- ENVIRONMENTAL*
- Material / Protection: Metal housing / IP67 Waterproof
- Operating Conditions: Temp: -30~+55°C / Humidity: less than ≤ 95% RH
- ELECTRICAL*
- Power :Max. 43W
- Input Voltage / Current : ACV24/DCV12/PoE=
- MECHANICAL*
- Dimension (W x H x D): 300mm × 300mm × 195mm (11.8” x 11.8” x 7.7”) inches
- Weight: Approximately 4.6kg(10.1lb)
