The COR-HYBIX8NX is a 8 channel hybrid, TVI, AHD DVR
  • The COR-HYBIX8NX is a 8 channel hybrid, TVI, AHD DVR
  • Front view of Hybix8NX  8 channel hybrid, TVI, AHD DVR

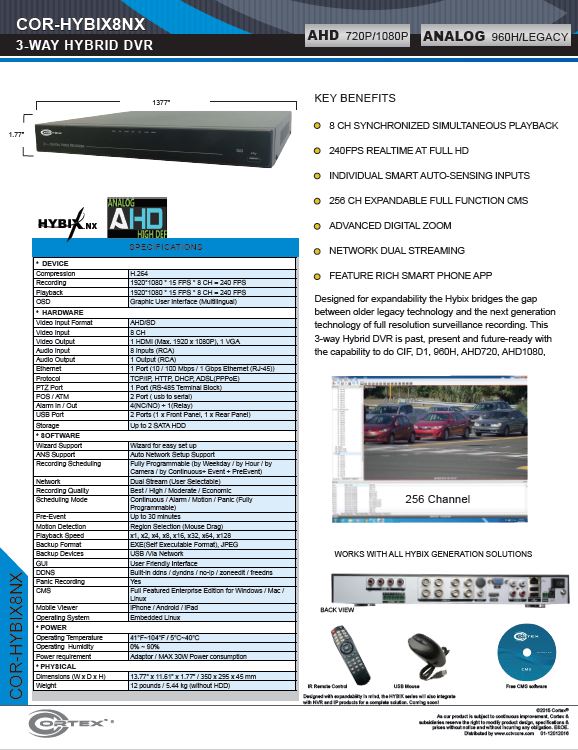

  • Graphic of Hybix8NX  8 channel hybrid, TVI, AHD DVR
Hybrid

(AHD 1080P / AHD 720 / 960H ANALOG)

This 4-way HYBIX8NX 4 channel Hybrid DVR is past, present and future-ready with the capability to do CIF, D1, 960H, AHD 720, AHD 1080 on individual smart auto sensing inputs. Robust CMS software can integrate up-to 256 cameras with multi-monitor CMS instances.

Designed for expandability the HYBIX8NX 8 channel bridges the gap between older legacy technology and the next generation technology of full resolution surveillance recording.

Send Me Prices

DVRS:
4 in 1, 8 Camera, 960H, AHD, Hybrid

Get Prices

Price: Login
Points to Purchase:4817
Share this product
Item #: COR-HYBIX8NX
Availability: Back Order

(AHD 1080P / AHD 720 / 960H ANALOG / 8 Channel)

Designed for expandability, the HybixNX 8 channel bridges the gap between older legacy technology and the next generation of full resolution surveillance recording with a light touch on your budget.

This 4-way Hybrid DVR is past, present and future-ready with the capability to do CIF, D1, 960H, AHD 720, AHD 1080.

Main Features

  • 4 Way Hybrid DVR
  • SET-UP WIZARD (Easy for Set-up)
  • ANS (Auto Network Setting)
  • POS / ATM
  • 8 CH Synchronized simultaneous playback
  • 240FPS Realtime at Full HD
  • Network Dual Streaming
  • Feature Rich Smart Phone App
  • Video Compression / H.265<
  • Advanced Digital Zoom
  • HDMI (1920 x 1080P) Video Output

* DEVICE

  • Codec: H.265
  • Recording Performance: 2592 * 1944 * 6 FPS * 8 CH = 48 FPS /
  • Playback Performance:1920 * 1080 * 12 FPS * 8 CH = 96 FPS
  • OSD Graphic User Interface (Multilingual)

* HARDWARE

  • Video Input Format: 5M AHD / TVI / SDI
  • Video Input: 8CH
  • Video Output: 1 HDMI (Max. 1920 x 1080P), 1 VGA
  • Audio Input: 4 Inputs (RCA)
  • Audio Output: 1 Output (RCA)
  • Audio Codec: ADPCM
  • Ethernet:1 Port (10 / 100 Mbps / 1 Gbps Ethernet (RJ-45))
  • PTZ Port: 1 Port (RS-485 Terminal Block)
  • POS / ATM: 2 Port (USB to Serial)
  • Alarm In / Out : None
  • USB Port: 2 Ports (2 x Rear Panel)
  • Storage: Up to 1 SATA HDD

* SOFTWARE

  • Wizard Support Wizard for easy setup
  • ANS: Support Auto Network Setup Support
  • Recording Scheduling: Fully Programmable (by Weekday / by Hour / by Camera / by Continuous + Event + PreEvent)
  • Network Dual Stream : (User Selectable)
  • Recording Quality: Best / High / Moderate / Economic
  • Scheduling Mode: Continuous / Alarm / Motion / Panic (Fully Programmable)
  • Pre-Event: Up to 30 minutes
  • Motion Detection: Region Selection (Mouse dragging support)
  • Playback Speed: x1, x2, x4, x8, x16, x32, x64, x128
  • Backup Format: EXE (Self Executable Format), JPEG
  • Backup Devices: USB
  • Time Zone: Yes
  • NTP: Yes
  • Menu: User Friendly GUI interface
  • DDNS: Bulit-in ddns / dyndns / no-ip / zoneedit / freedns
  • Day Light Saving: Yes
  • Panic Recording: Yes
  • Multi Language: 33 languages
  • CMS: Full Featured Enterprise Edition for Windows / Mac / Linux
  • Mobile Support: iPhone / Android / iPad
  • Operating System: Embedded Linux

* POWER

  • Operating Temperature: 41°F~104°F / 5°C~40°C
  • Operating Humidity: 0% ~ 90%
  • Power requirement: Adapter (included)
  • Power Consumption: MAX 30W

* PHYSICAL

  • Dimensions (WxHxD): ) 13.77” x 11.61” x 1.77” inches / 350 x 295 x 45 mm
  • Weight:12 pounds / 5.44 kg (without HDD)
