The COR-CN420 PTZ 3-D controler has an easily accessigle backpane witches for setting camera protocols. The COR-CN420 has four baud rates (selectable): 2400Bps, 4800Bps, 9600Bps,19,200Bps

  • Password protection
  • High Resolution Large LCD
  • RS485 Communication
  • Support multiple user authority
  • 3-Axis joystick for PTZ control

See specifications for technical descriptions and features.

Send Me Prices

PTZ Controller:
Controllers, DC12V, Joystick, RS485

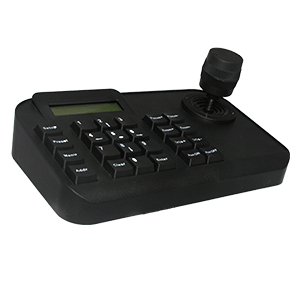

3-D PTZ controller wIth LCD screen from Cortex® specifications for this accessory product COR-CN420

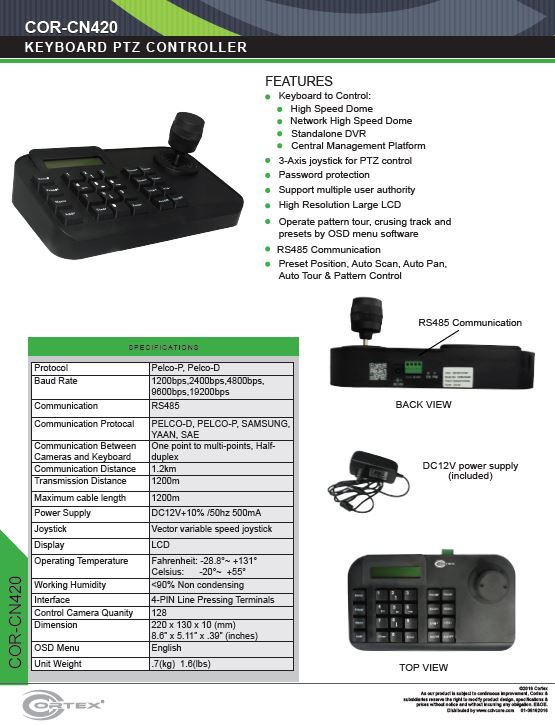

Specification Sheet

Get Prices

Price: Login
    Points to Purchase:2467
    Quantity:
    Share this product
    Item #: COR-CN420
    Availability: In Stock
    Usually ships In 1-2 Business Days

    The COR-CN420 PTZ 3-D controler has an easily accessigle backpane witches for setting camera protocols. The COR-CN420 has Four baud rates (selectable): 2400Bps, 4800Bps, 9600Bps,19,200Bps

    Main Features and Specifications

    • Password protection
    • High Resolution Large LCD
    • RS485 Communication
    • Support multiple user authority
    • 3-Axis joystick for PTZ control
    • Joystick display LCD
    • Four baud rates (selectable): 2400Bps, 4800Bps, 9600Bps,19,200Bps
    • Easily accessible backpanel switches for setting camera protocols:
      • Pelco-D
      • Pelco-P (4800Bps or 9600Bps)
      • SAMSUNG
      • YAAN
      • SAE
    • Communication between camera and controller: One point to multi-points, Half duplex
    • Communication RS485
    • Communication Distance 1.2km
    • Transmission Distance 1200m
    • Control Camera Quanity 128
    • Dimension 220 x 130 x 10 (mm)8.6" x 5.11" x .39"(inches)
    • Weight:.7(kg) 1.6(lbs)
    • Power: DC12V+10% /50hz 500mA
